Securing engine on assembly support

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy components

Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Information

The engine needs to be suspended on an assembly support for certain repair work.

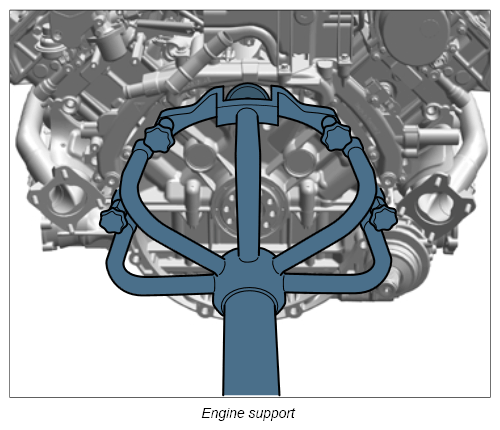

Secure engine support to the engine - engine support 9676/1 . To do this, use the four screws mounting parts 9590 and tighten them. → Engine support Bend the heat protection panel on the front-axle final drive on the turbo engine aside slightly if necessary (collision).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

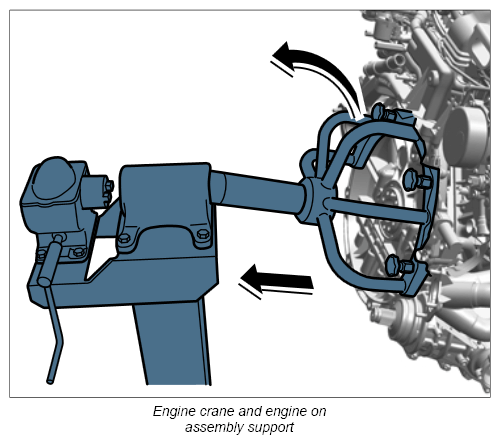

Move engine in front of the engine support (assembly support) using the workshop crane and guide it in with the help of a second worker. Lift the engine so that it can be eased in horizontally. → Engine crane and engine on assembly support

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

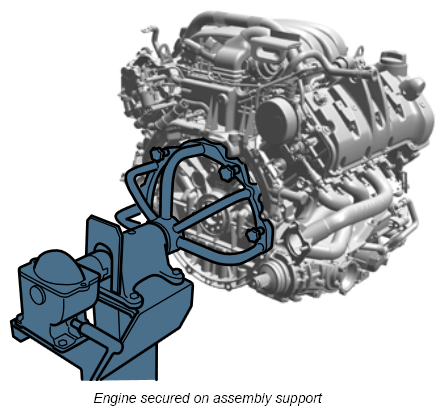

Secure engine on assembly support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
