Securing engine to engine crane

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy components

Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Information

The pictures shown in this document may differ from the original.

Information

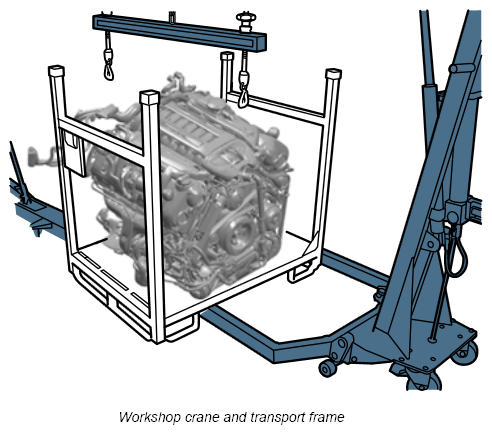

When removing the new engine from the transport frame, it may be necessary to raise the transport frame at the side (flat jack or similar). → Workshop crane and transport frame
When removing the new engine from the transport frame, it may be necessary to safeguard the engine against lateral movement using a second worker and against scratching by covering it with a blanket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove design cover on engine if necessary.

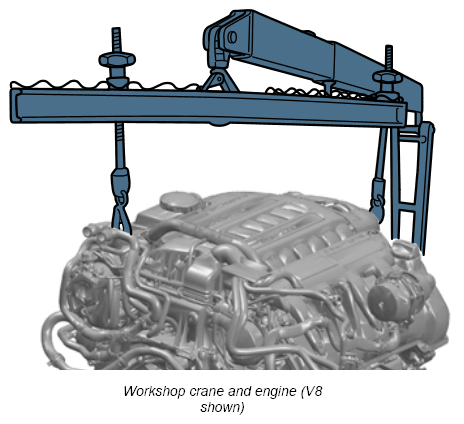

Engage one hook of the lifting tackle 3033 in the rear transport eyebolt on the engine. Engage the other hook of the lifting tackle at the front of the engine. Raise the workshop crane slightly and tension the spindles slightly. The lifting tackle must be adjusted evenly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully lift the engine and balance it or separate the engine from the transmission, depending on what you want to do.
