Marking engine number

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Do not use steel stamping numbers to mark the engine number on direct fuel injection engines.
Due to the material composition, the engine number must be engraved using the specified tool.

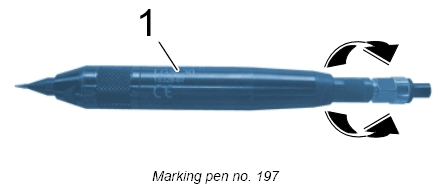

Connect compressed-air marking pen Nr.197 -1- to compressed air supply.

1.1. Turn the adjusting ring to open or close the compressed air supply.

1.2. First test the tool on a piece of waste material.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

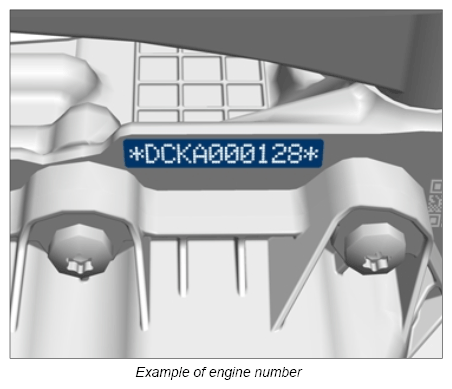

Use the marking pen to engrave the engine number into the crankcase.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

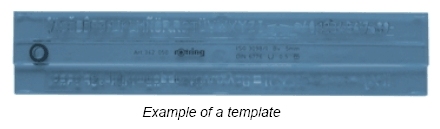

2.1. To provide a clear marking, use a 0.5 (5 mm) template!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
