Removing engine

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy components

Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

Unscrew fastening screws -1, 2 and 3- at the engine mount.

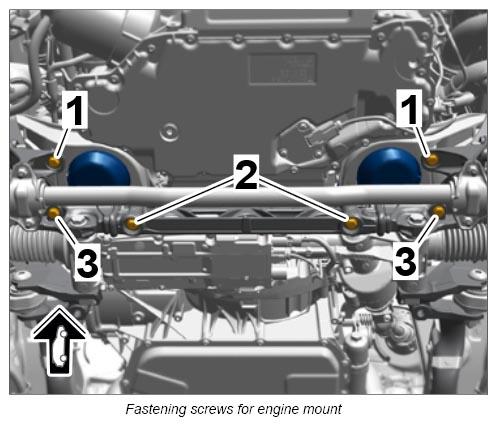

Fig 1: Engine Mount Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove engine using workshop crane WE 1188 . Check clearance.
