Mounting engine

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy components

Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

Position engine using workshop crane WE 1188 .
Fit fastening screws -1, 2 and 3- on the engine mount.
1. 2.1. Tighten fastening screws -3- .
2. 2.2. Tighten fastening screws -2- .
3. 2.3. Tighten fastening screws -1- .

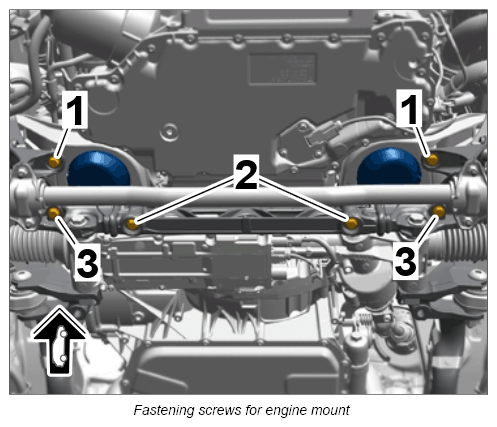

  Fig 1: Engine Mount Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
