Tools and materials
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Master Gear unit elevating platform WE 1206 with assembly fixture Assembly Fixture - Macan WE 1612

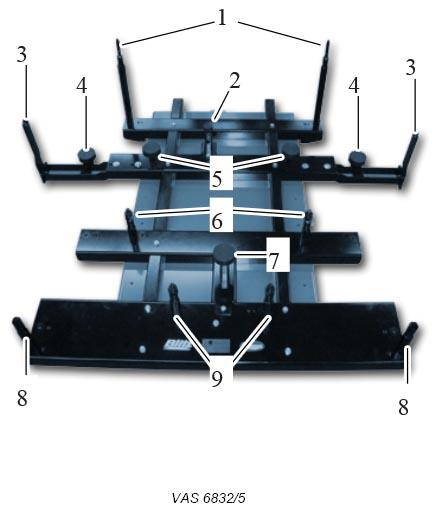

Legend for assembly drivers and supports
| Item | Designation | Explanation |
|---|---|---|
| 1 | Guide pin | Locating pins are only for guiding the assembly fixture and must not be touching the body. |
| 2 | Front-axle carrier support | For mounting on the front of the front-axle carrier. |
| 3 | Wheel hub holder | Prevents the axles from falling out. |
| 4 | Steering knuckle bracket | Used together with the wheel hub holder 3 to protect the axles and spring struts from damage. |
| 5 | Front-axle carrier support | For supporting the front of the front-axle carrier. |
| 6 | Assembly driver | For mounting on the rear of the front-axle carrier. |
| 7 | Transmission bracket | For supporting the transmission bracket. |
| 8 | Rear guide mandrels | For guiding into the body. |
| 9 | Assembly driver | For mounting on the transmission bracket. |
