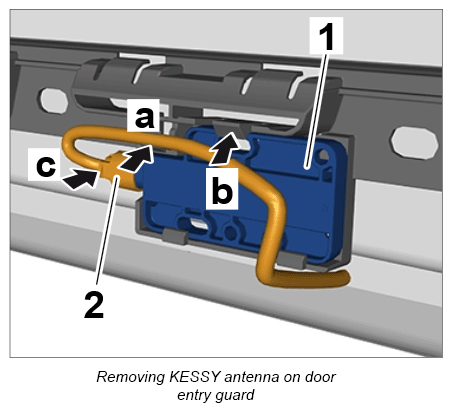

Removing KESSY antenna on door entry guard
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Unclip electric line from the holder -a-
.
- Disengage retaining lug -b-
and remove KESSY antenna on door entry guard -1-
from its holder.
- Release and disconnect electric plug connection -2-
(-c-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
