Removing KESSY antenna on dashboard

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

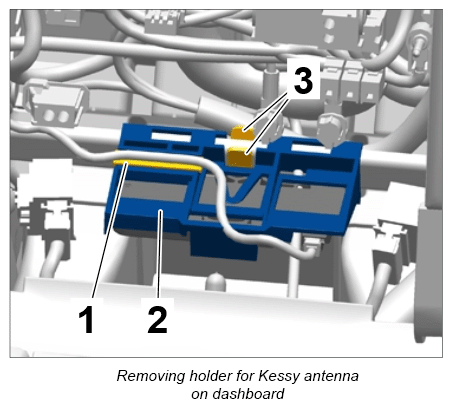

  1. Unclip holder -1-  for line at the holder -2-  .
  2. Disengage clips -3-  on the holder and pull holder with Kessy antenna on dashboard up off the dashboard strut.
    G12837506Courtesy of PORSCHE CARS NORTH AMERICA, INC.

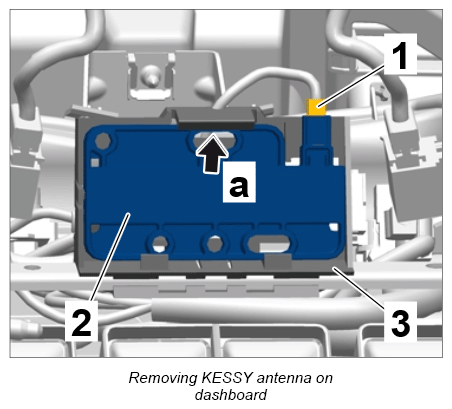

  3. Disconnect electric plug connection -1-  from Kessy antenna on dashboard -2-  .
  4. Disengage retaining lug -a-  and remove KESSY antenna on dashboard from its holder -3-  .
G12837507Courtesy of PORSCHE CARS NORTH AMERICA, INC.
