Removing alarm siren

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

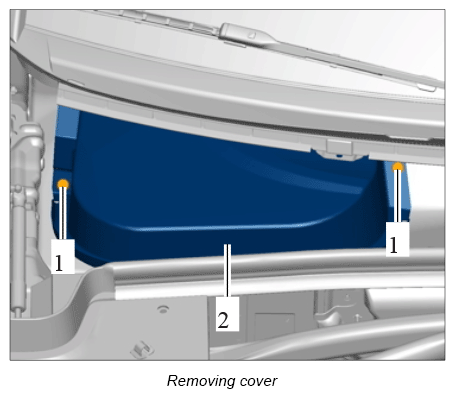

  1. Screw off fastening nuts -1-  and remove cover -2-  .
    G12837502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

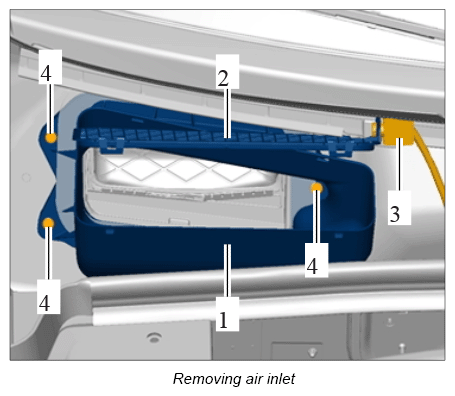

  2. Remove air inlet -1-  .
    1. 2.1. Disengage grille -2-  in front of the air inlet and pull it to the rear and out of the guides.
    2. 2.2. Carefully set the grille aside and leave electric plug connection on the air quality sensor -3-  connected.
    3. 2.3. Screw off fastening nuts -4-  and remove air inlet.
    G12837503Courtesy of PORSCHE CARS NORTH AMERICA, INC.

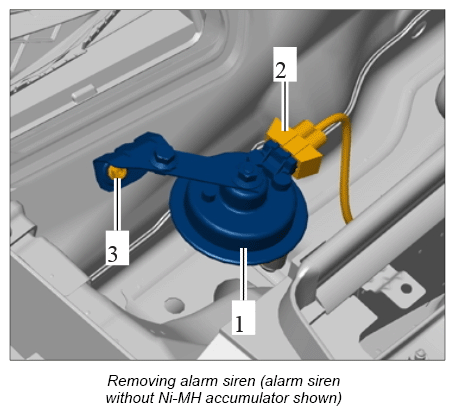

  3. Remove alarm siren -1-  .
    1. 3.1. Release electric plug connection -2-  and pull it off the alarm siren.
    2. 3.2. Unscrew fastening nut -3-  and remove alarm siren and holder.
G12837504Courtesy of PORSCHE CARS NORTH AMERICA, INC.
