Removing bulb

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

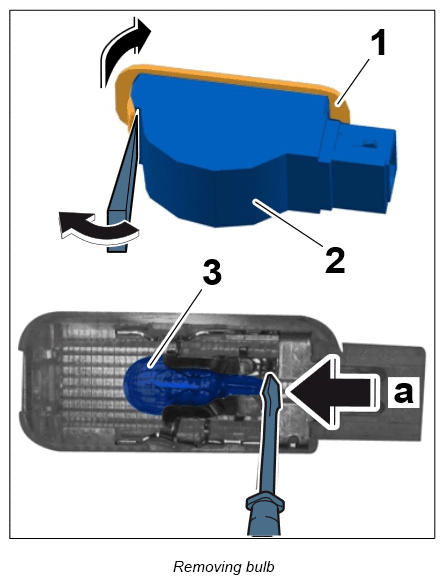

  1. Carefully prise off lens -1-  using a plastic wedge and remove it from the housing -2-  .
  2. Press bulb -3-  out of the lens holder using a small screwdriver -a-  .
G12837496Courtesy of PORSCHE CARS NORTH AMERICA, INC.
