Removing front camera
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work .
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
- Do not touch electric pins and plug contacts .
Information
Do not touch the front camera lens!
- Switch off ignition and pull remote control out of ignition lock.
- Carefully disengage locks -1-
at the left and right using two plastic wedges -a-
and press front camera -2-
to the rear and out of the holder -b-
.

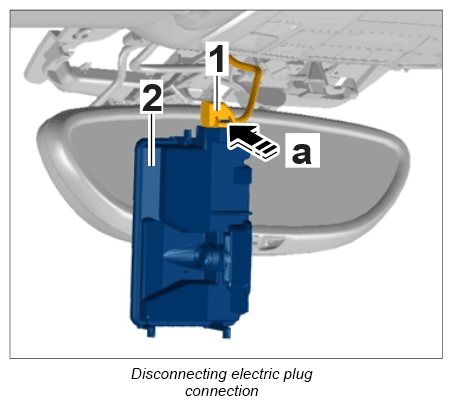

- Release electric plug connection -1- (-a- ) and pull it off the front camera -2- .
