Removing secondary air valve

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

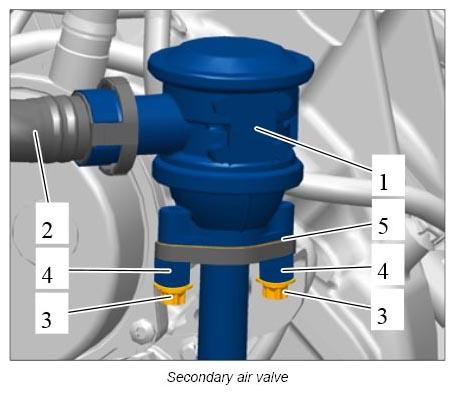

Remove secondary air valve -1 - .

1.1. Release and disconnect secondary air hose -2- .

1.2. Unscrew screws -3- with decoupling elements -4- and remove secondary air valve with seal -5- .
