Preliminary work for cylinders 1-3

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

With engine installed  =>

  1. Remove front strut. → 408619 REMOVING AND INSTALLING FRONT STRUT (DOME STRUT)

    If cylinder head is replaced =>

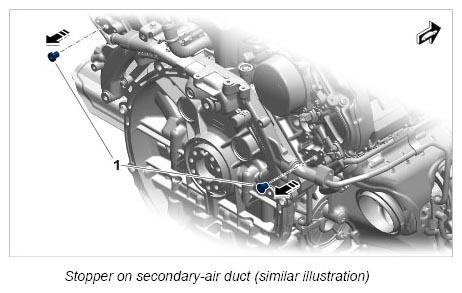

  2. Remove stopper.
    G12833873Courtesy of PORSCHE CARS NORTH AMERICA, INC.
