Installing secondary-air pump

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Tightening torques, tightening sequence and assembly overviews for the engine and transmission:

Group 1: → 1X00IN TECHNICAL VALUES
Group 2: → 2X00IN TECHNICAL VALUES
Group 3: → 3X00IN TECHNICAL VALUES

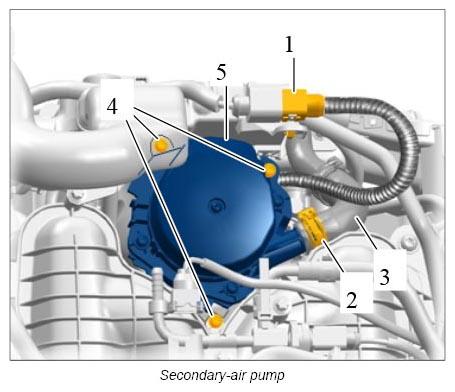

Install secondary-air pump.

1.1. Move secondary-air pump into installation position and tighten screws to the specified torque.
1.2. Insert secondary air hose -3- and tighten clamp -2- .

1.3. Clip in cable plug on the holder and plug it in -1- .
