Removing and installing exhaust flap actuator

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

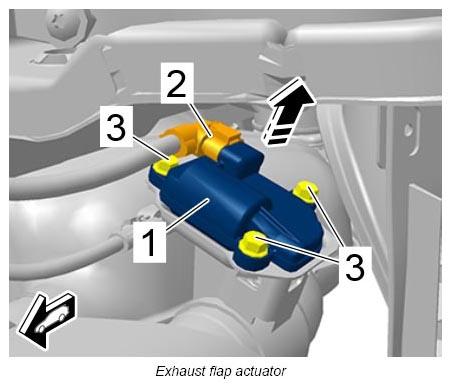

Remove exhaust flap actuator -1- .
1. 1.1. Release and disconnect cable plug -2- .
2. 1.2. Unscrew and remove screws -3- .
3. 1.3. Remove exhaust flap actuator -1- by pulling it upwards.
Installation is performed in reverse order. Pay particular attention to the following:
Tighten screws -3- .

Tightening torque 5 Nm (3.5 ft lb.)
