Removing tailpipe cover

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Hot components
  • Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Information

The pictures shown in this document may differ from the original.

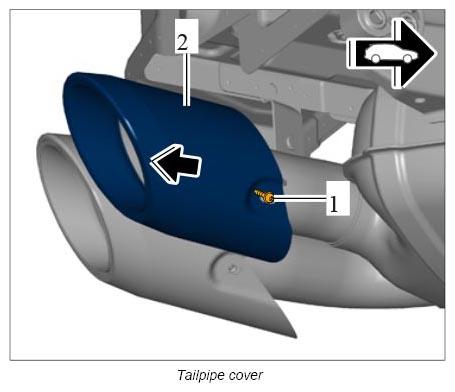

  1. Unscrew screw -1-  and pull off tailpipe cover -2-  in direction of arrow.
    1. 1.1. Mark installation position.
      G12833868Courtesy of PORSCHE CARS NORTH AMERICA, INC.
