Installing exhaust system

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order. Pay particular attention to the following:
1. 1.1. Align exhaust-system mount.
2. 1.2. Tightening torque for nuts securing rear silencer holder to body: Tightening torque 20 Nm (15 ft lb.)
3. 1.3. Tightening torque for screws securing rear silencer holder to rear body: Tightening torque 20 Nm (15 ft lb.)
4. 1.4. Tightening torque for nuts on clamp: Tightening torque 30 Nm (22 ft lb.) +/-5 Nm (+/-3.5 ft lb.)

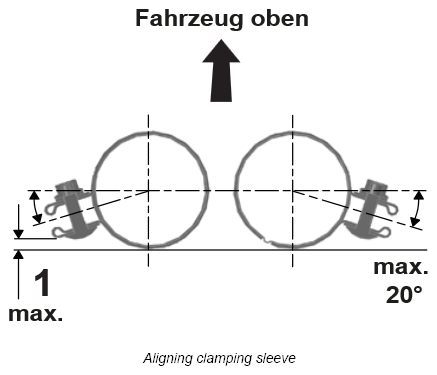

5. 1.5. Align clamp.

3 mm /Clip contour must not be lower than the lower edge of the clamping sleeve.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
