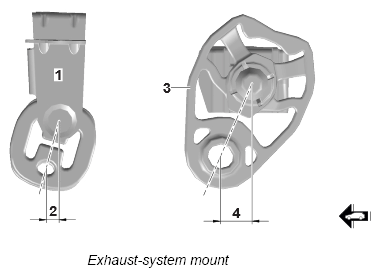

Exhaust-system mount
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Mount for center silencer |
| 2 |
8 mm
/Preload applies to holders before and after center silencer |
| 3 |
Mount for rear silencer |
| 4 |
13 mm
/Preload applies to holders before and after rear silencer at the rear left and right |
