Tightening sequence for front-axle carrier

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

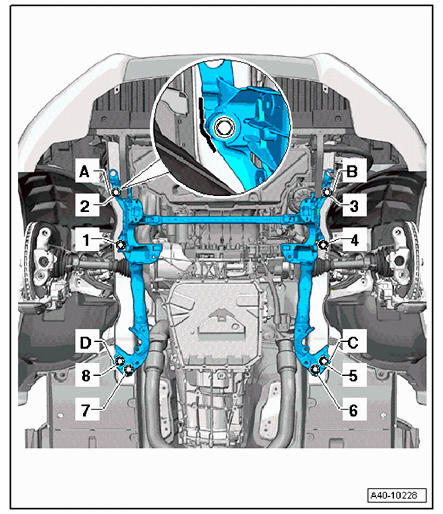

Fig 1: Front-Axle Carrier Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A - D	Mark installation position before removal
1 to 8	Fastening screws on front-axle carrier
