Front-axle carrier

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

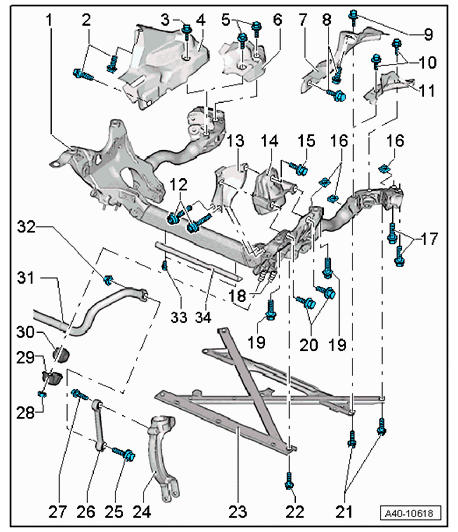

1	Front-axle carrier
2	Fastening screws → Tightening torque: 9 Nm (6.5 ft. lb.)
3	Fastening screw → Tightening torque: 20 Nm (15 ft. lb.)
4	Right heat shield on front-axle carrier
5	Fastening screws → Tightening torque: 20 Nm (15 ft. lb.)
6	Right heat shield over engine mount
7	Left heat shield on front-axle carrier
8	Fastening screws → Tightening torque: 9 Nm (6.5 ft. lb.)
9	Fastening screw → Tightening torque: 20 Nm (15 ft. lb.)
10	Fastening screws → Tightening torque: 20 Nm (15 ft. lb.)
11	Left heat shield on engine mount
12	Fastening screws/replace → Tightening torque: 30 Nm (22 ft. lb.)
13	Retainer plate for engine mount
14	Engine mount
15	Fastening screw/replace → Initial tightening: 90 Nm (67 ft. lb.) → Final tightening: +90°
16	Square nut/replace
17	Fastening screws/replace → Initial tightening: 115 Nm (85 ft. lb.) → Final tightening: +90°
18	Stud/replace if damaged
19	Fastening screw/replace → Initial tightening: 115 Nm (85 ft. lb.) → Final tightening: +90°
20	Fastening screws → Tightening torque: 55 Nm (41 ft. lb.)
21	Rear fastening screws to cross-strut/replace → Initial tightening: 90 Nm (67 ft. lb.) → Final tightening: +135°
22	Front fastening screw to cross-strut/replace → Initial tightening: 90 Nm (67 ft. lb.) → Final tightening: +90°
23	Cross-strut for front-axle carrier
24	Shock absorber fork
25	Fastening screw/replace → Initial tightening: 40 Nm (30 ft. lb.) → Final tightening: +90°
	Must be tightened at empty weight position
26	Connecting link
27	Fastening screw/replace → Initial tightening: 40 Nm (30 ft. lb.) → Final tightening: +90°
	Must be tightened at empty weight position
28	Fastening nut/replace → Tightening torque: 25 Nm (19 ft. lb.)
29	Clip
30	Rubber mounting
	Opening in the rubber mounting must be facing the front-axle carrier during installation.
	The anti-roll bar and rubber mounting be free of grease during assembly.
31	Anti-roll bar
32	Fastening nut
33	Fastening screw for protective plate → Tightening torque: 20 Nm (15 ft. lb.)
34	Protective plate
