Subsequent work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Install ATF lines. → 386219 REMOVING AND INSTALLING LINE FOR ATF COOLING
Secure the drive shafts on both sides. → 404119 REMOVING AND INSTALLING FRONT DRIVE SHAFT
Fit heat shields for the drive shaft on both sides and secure with fastening screws.
Tighten fastening screws. Tightening torque 23 Nm (17 ft. lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

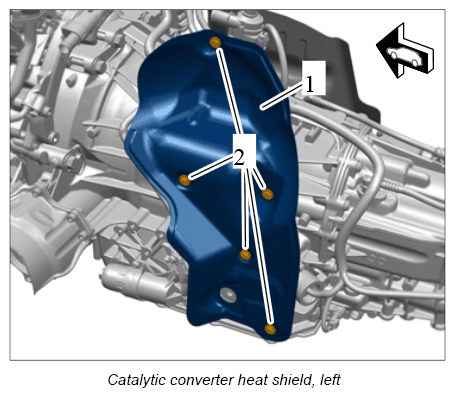

Fit left heat shield -1 - and secure with fastening screws -2- . Tightening torque 8 Nm (6 ft. lb.) +/-1.5 Nm ft. lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

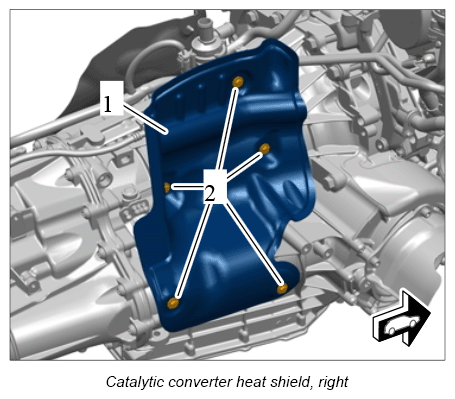

Fit right heat shield -1- and secure with fastening screws -2- . Tightening torque 8 Nm (6 ft. lb.) +/-1.5 Nm ft. lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install catalytic converter. → 267319 REMOVING AND INSTALLING CATALYTIC CONVERTER
Install engine. → 100119 REMOVING AND INSTALLING ENGINE
