Removing Porsche Doppelkupplung (PDK)

Information

• The pictures shown in this document may differ from the original.

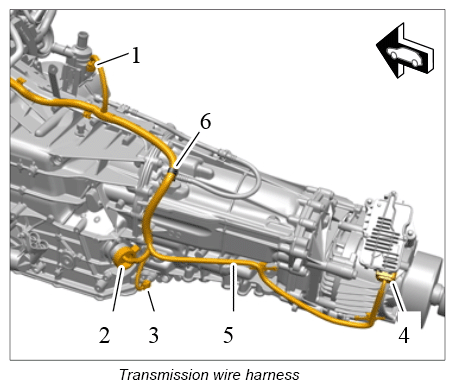

1. Disconnect electric plug connections -1...4-  , release holder -6-  and place wire harness -5-  on the engine.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

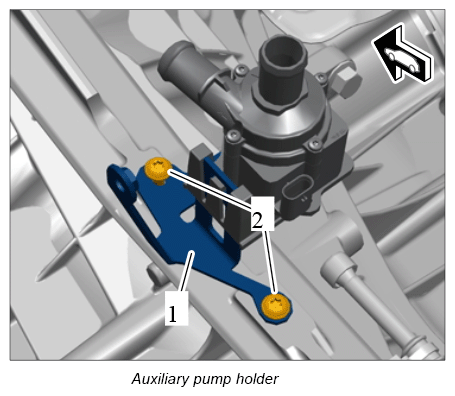

2. Unscrew fastening screws -2-  and disconnect holder -1-  with auxiliary pump from the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Pull off cover on drive plate at the underside of the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Loosen dual-mass flywheel from the drive plate.
   1. 4.1. Unscrew fastening screw.

      Counter at the crankshaft when loosening the screws.

   2. 4.2. For the next screw, turn the crankshaft a further 60° in direction of rotation of the engine  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

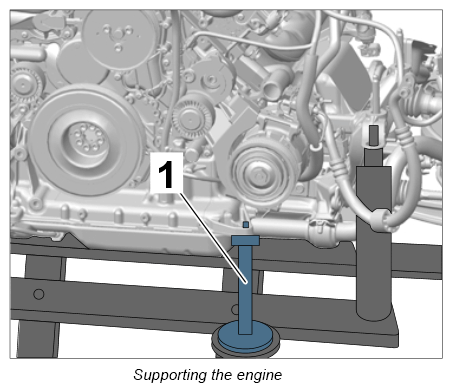

5. Secure the engine to prevent it from slipping using support from assembly fixture - Panamera WE 1367 -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   NOTE: Engine/transmission is supported on the oil pan.

   • Leaks at the oil pan

   → Use prescribed tools and aids.

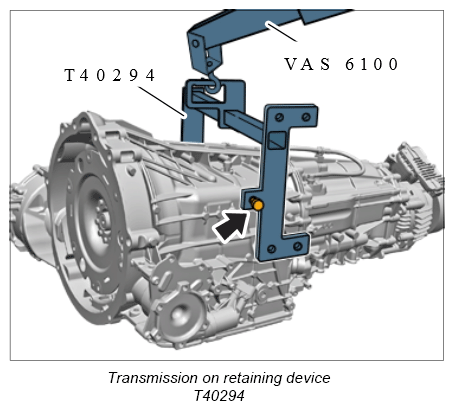

6. Use hook and support tool T40294  to secure the transmission to the workshop crane WE 1188  .
   1. 6.1. Hook and support tool T40294  must be engaged in the housing bores on the right.
   2. 6.2. Fit knurled screw at the left on the transmission.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

7. Loosen fastening screws -1 and 5-  and remove transmission.

   Check clearance during removal  .

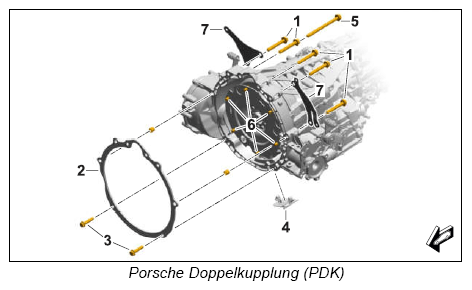

   1. 7.1. Remove spacer -2-  from the dowel sleeves.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
