Preliminary work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine. → 100119 REMOVING AND INSTALLING ENGINE
Remove catalytic converter. → 267319 REMOVING AND INSTALLING CATALYTIC CONVERTER

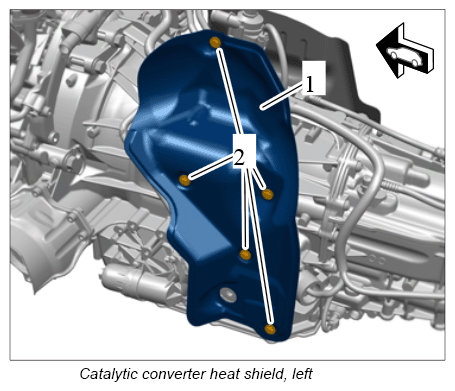

Unscrew fastening screws -2- and remove heat shield at the left -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

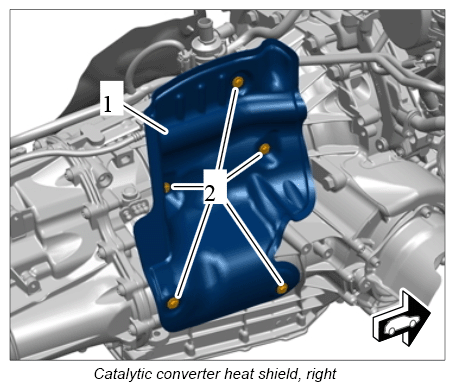

Unscrew fastening screws -2- and remove heat shield at the right -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove heat shields on the drive shaft at both sides.
Unscrew fastening screws and remove heat shields.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen drive shafts at both sides from the transmission. → 404119 REMOVING AND INSTALLING FRONT DRIVE SHAFT
Remove ATF lines. → 386219 REMOVING AND INSTALLING LINE FOR ATF COOLING
