Mounting double clutch transmission

→ Use prescribed tools and aids.

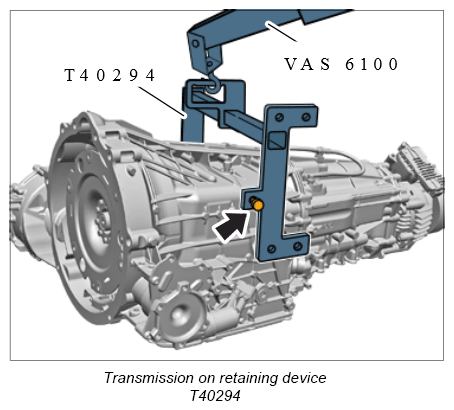

1. Use hook and support tool T40294  to secure the transmission to the workshop crane WE 1188  .
   1. 1.1. Hook and support tool T40294  must be engaged in the housing bores on the right.
   2. 1.2. Fit knurled screw at the left on the transmission.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Check that the spacer is fitted at the correct position.
   • The markings on the spacer must be legible after positioning it on the engine flange.
2. Mount transmission.
   1. 2.1. Fit spacer -2-  on the dowel sleeves on the engine.

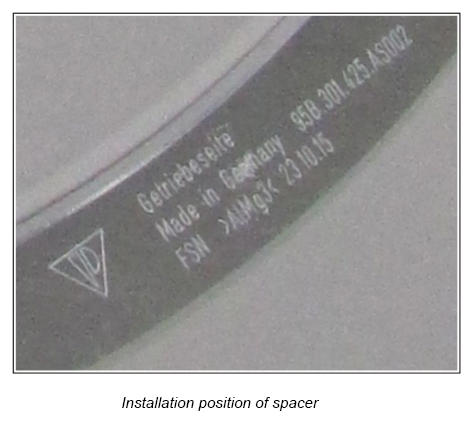

      Check installation position of the spacer; the markings must be legible  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

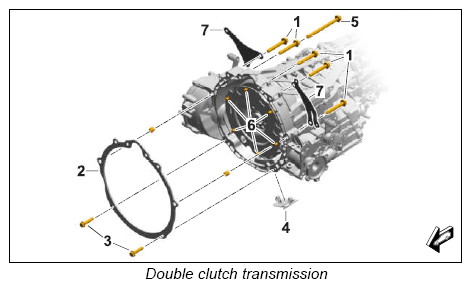

   2. 2.2. Position transmission and fit and tighten fastening screws -1 and 5-  with holders -7-  .
   3. 2.3. Tighten fastening screws -1 and 5-  .

      Screw 1: Tightening torque 80 Nm (59 ft. lb.)

      Screw 5: Tightening torque 80 Nm (59 ft. lb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

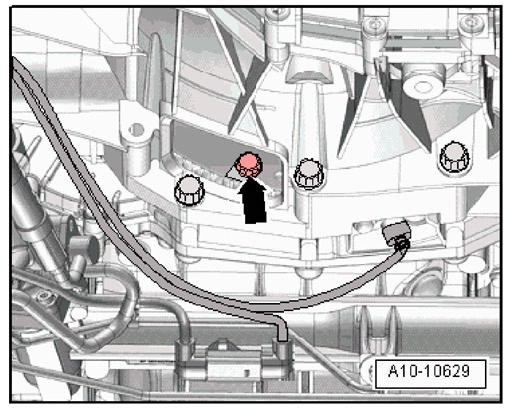

3. Secure dual-mass flywheel on the drive plate.
   1. 3.1. Fit fastening screws.

      Turn the crankshaft a further 60° in direction of rotation of the engine  .

   2. 3.2. Tighten fastening screws using socket-wrench insert 9836/1  . Tightening torque 60 Nm (44 ft. lb.)

      Counter the crankshaft at the pulley when tightening the fastening screws.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

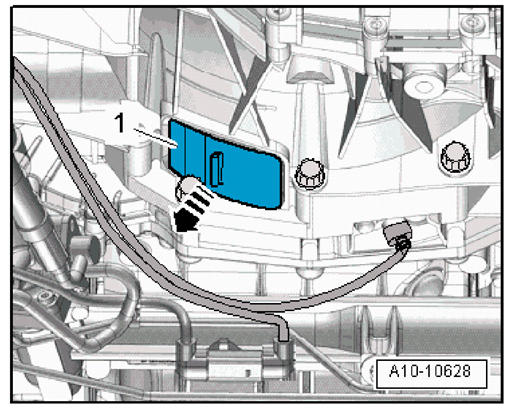

4. Install cover -1-  on the underside of the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

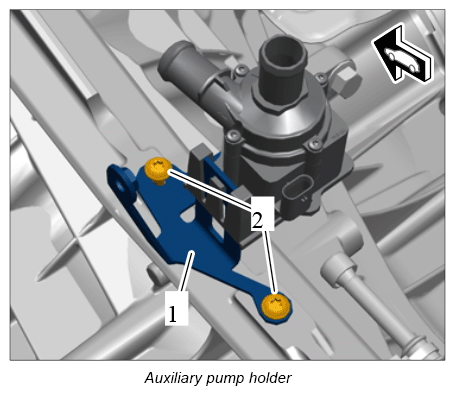

5. Fit holder -1-  with auxiliary pump on the transmission and tighten fastening screws -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

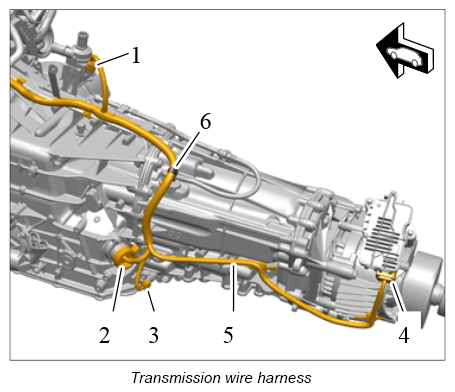

6. Connect electric plug connections -1...4-  , clip in holder -6-  and secure the wiring harness at the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
