Securing Porsche Doppelkupplung (PDK) to mounting bracket

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

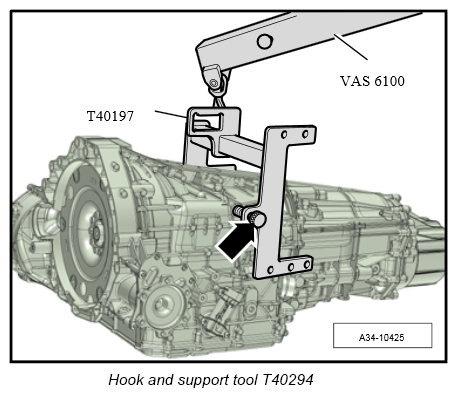

Hook and support tool T40294 must be engaged in the housing bores at the right side of the transmission and secured using the knurled screw at the left side of the transmission.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

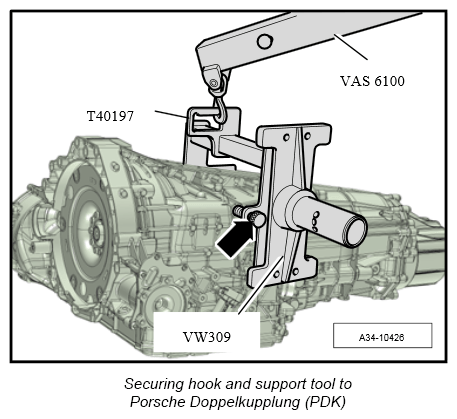

Support plate VW309A must be screwed to the hook and support tool T40294 .

2.1.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

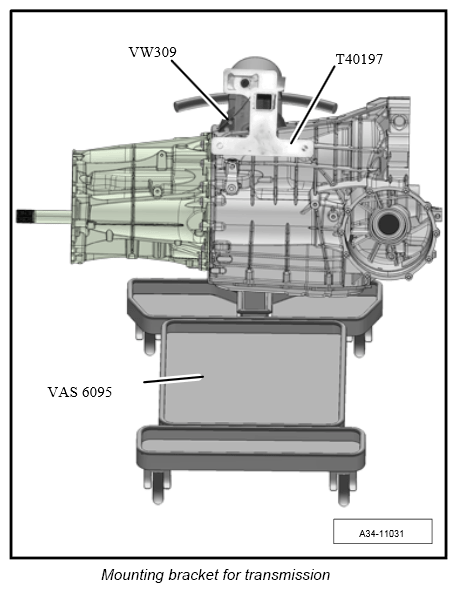

Use the workshop crane WE 1188 to fit the transmission into the engine and gearbox support WE 1323 .
