Replacing sealing ring for selector shaft

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Tap out cotter pin -1- for selector lever on the transmission.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not damage the sealing face when removing the sealing ring.

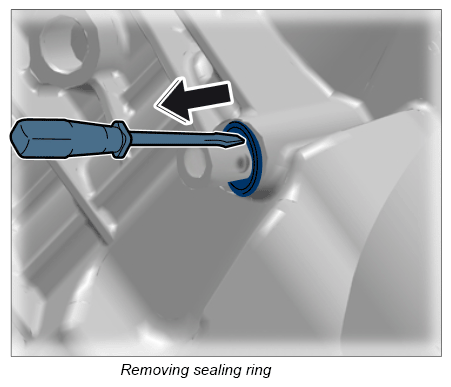

Carefully remove sealing ring with a screwdriver.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

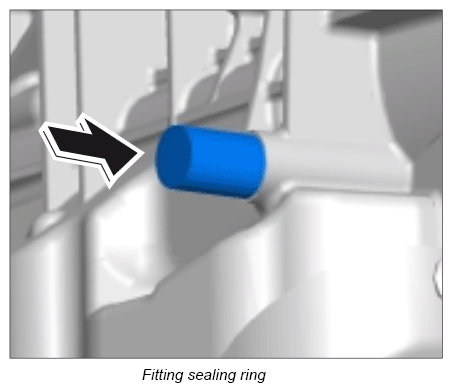

Press in new sealing ring as far as the stop on the sealing ring using pressure piece 9834 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tap in cotter pin -1- for selector lever on the transmission.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
