WM 373355 Replacing sealing ring for selector shaft: Information

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

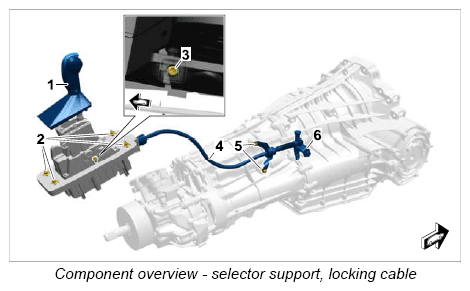

G12834147Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1  Selector knob
2  Fastening nuts for selector support
3  Adjusting screw for locking cable
4  Locking cable
5  Fastening screws for locking cable holder
6  Selector lever
