Removing locking cable

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

No lateral forces must be applied to the pull rod of the selector knob.

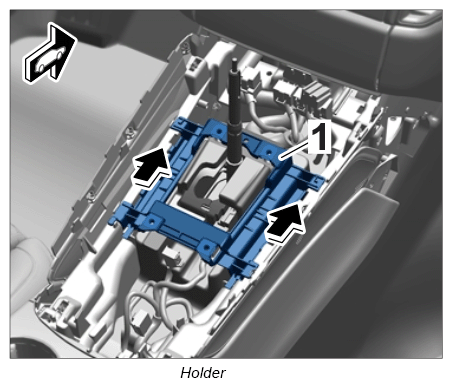

Press holder for switch console -1- in -direction of arrow- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

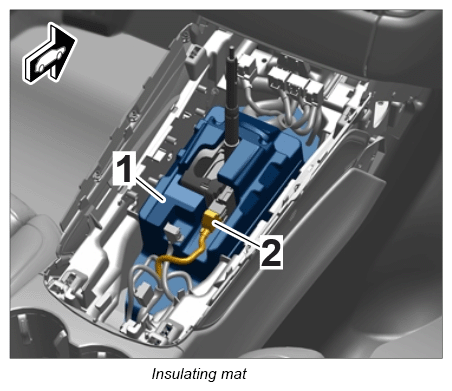

Disconnect electric plug connection -2- and remove insulating mat -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move selector lever to position "P".
Information
- Loosen clamping screw for locking cable by only about 1 turn.
- The clamping screw is only accessible in selector-lever position "P".
- When the clamping screw is loosened, the selector lever must remain in position "P".

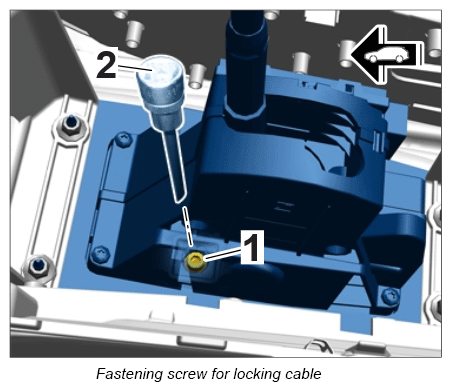

Loosen clamping screw -1- for locking cable using socket insert a/f 5 T40031 .
Clamping screw remains in place .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

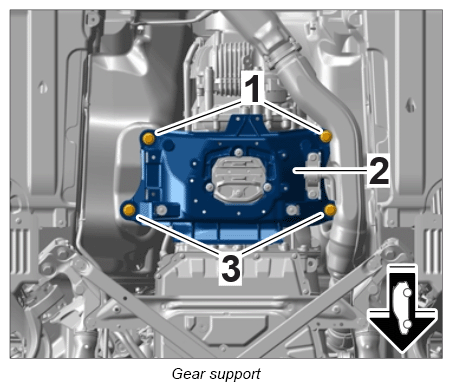

Unscrew fastening screws -1- and -3- , support the transmission using transmission bracket and lower it by about 25 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

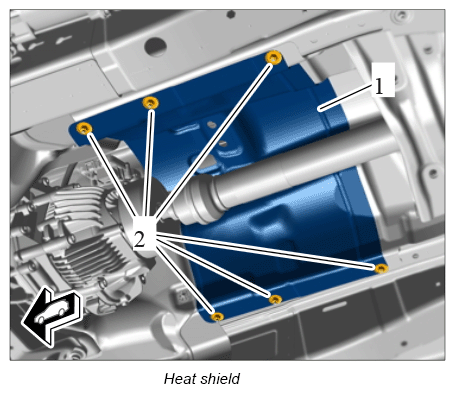

Unscrew fastening nuts -2- and remove heat shield.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

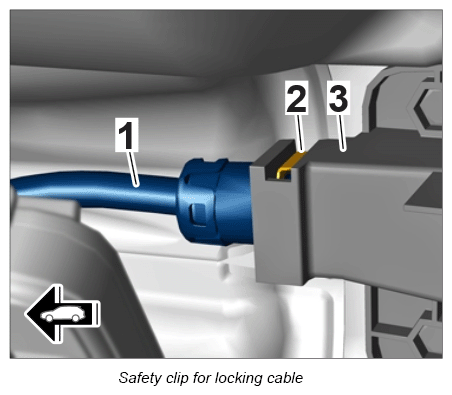

Loosen safety clip -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

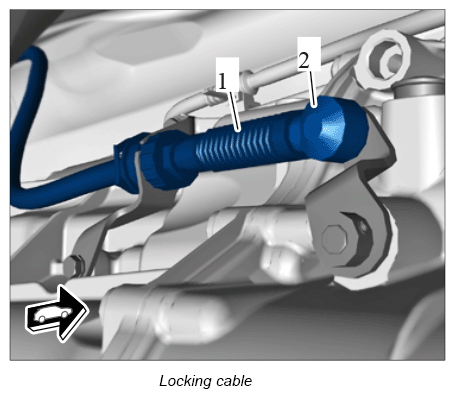

Remove locking cable -1- .

8.1. Loosen ball socket -2- .
8.2. Loosen fastening screws for holder and remove holder for locking cable.

8.3. Remove locking cable -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
