Installing locking cable

Information

No lateral forces must be applied to the pull rod of the selector knob.

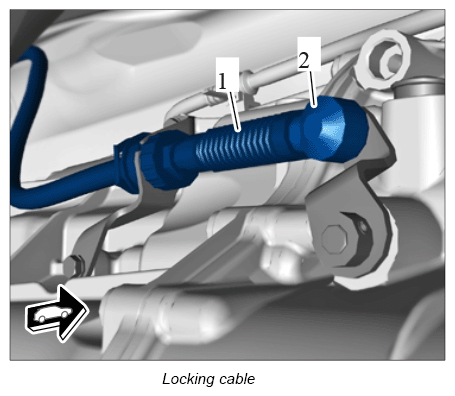

1. Install locking cable -1-  .
   1. 1.1. Position locking cable -1-  .
   2. 1.2. Fit holder for locking cable and fit and tighten fastening screws. Tightening torque 8 Nm (6 ft. lb.)
   3. 1.3. Insert ball socket -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

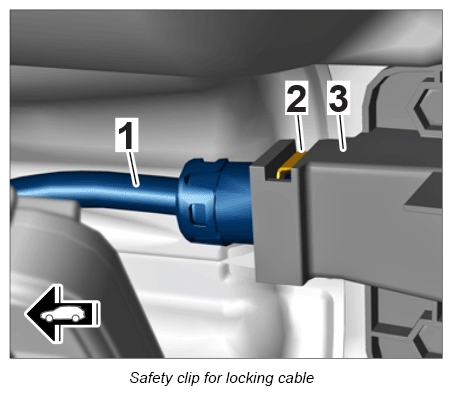

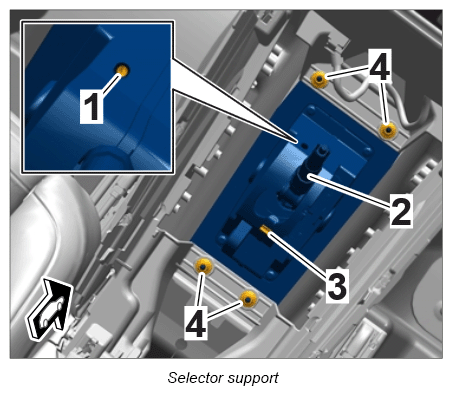

2. Guide locking cable -1 -  into the selector support -3-  and fit safety clip -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

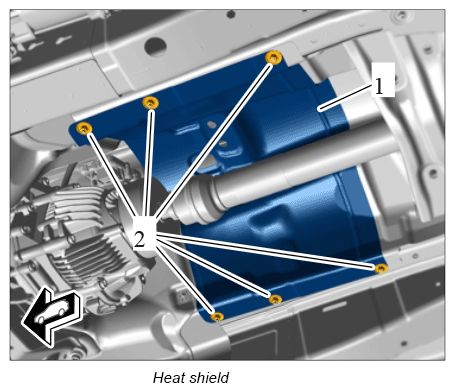

3. Position heat shield and fit and tighten fastening nuts -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

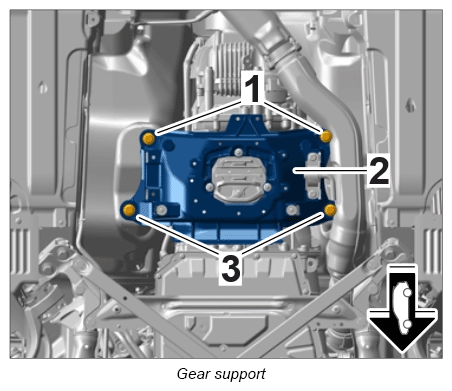

4. Lift the transmission and fit and tighten fastening screws -1-  and -3-  . Tightening torque 70 Nm (52 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Loosen clamping screw for locking cable by only about 1 turn.
   • The clamping screw is only accessible in selector-lever position "P".
   • When the clamping screw is loosened, the selector lever must remain in position "P".

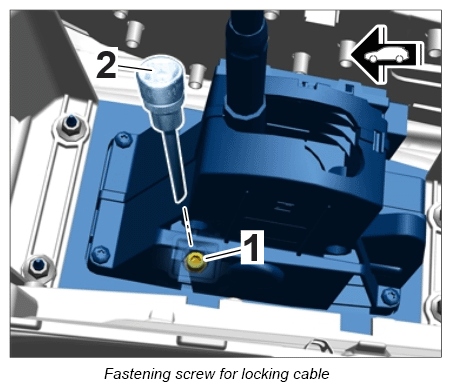

5. Tighten fastening screw -1-  for the locking cable using socket insert a/f 5 T40031  . Tightening torque 13 Nm (9.5 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Press release -3-  , actuate selector knob -2-  and move selector lever from position "P" to "D" and from position "D" to "M" and back again several times.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

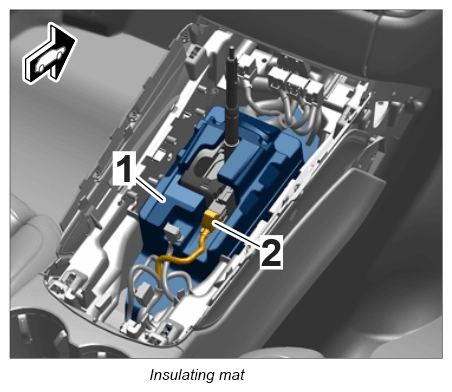

7. Position insulating mat -1-  and connect electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

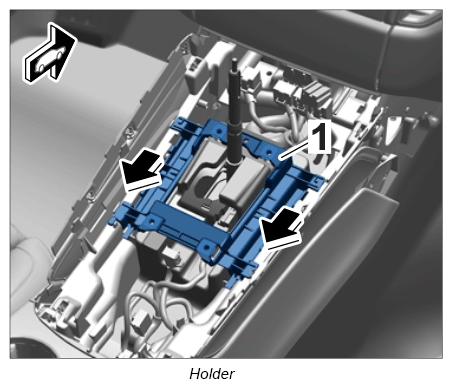

8. Position holder for switch console -1-  and engage in -direction of arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
