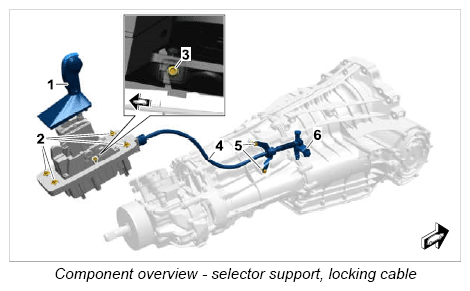

Component overview - selector support, locking cable
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Selector knob |
| 2 |
Fastening nuts for selector support → Tightening torque: 8 Nm (6 ft. lb.) |
| 3 |
Adjusting screw for locking cable → Tightening torque: 13 Nm (9.5 ft. lb.) |
| 4 |
Locking cable |
| 5 |
Fastening screws for locking cable holder → Tightening torque: 8 Nm (6 ft. lb.) |
| 6 |
Selector lever |
