Adjusting locking cable

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

No lateral forces must be applied to the pull rod of the selector knob.

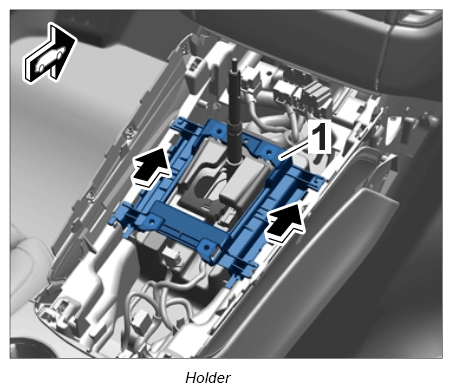

Press holder for switch console -1- in -direction of arrow- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

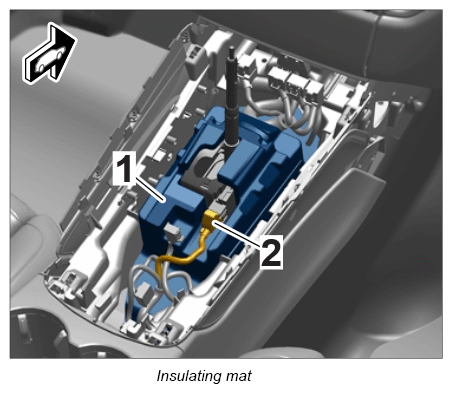

Disconnect electric plug connection -2- and remove insulating mat -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move selector lever to position "P".
Information
- Loosen clamping screw for locking cable by only about 1 turn.
- The clamping screw is only accessible in selector-lever position "P".
- When the clamping screw is loosened, the selector lever must remain in position "P".

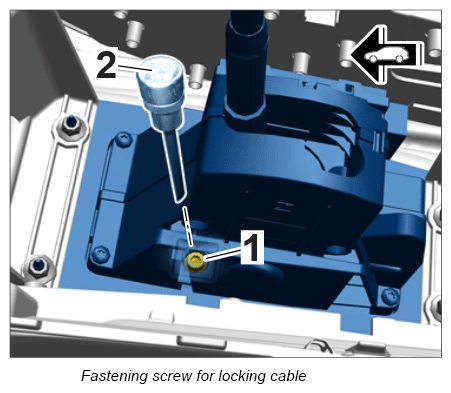

Loosen clamping screw -1- for locking cable by about 1 turn using socket insert a/f 5 T40031 .
Clamping screw remains in place .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

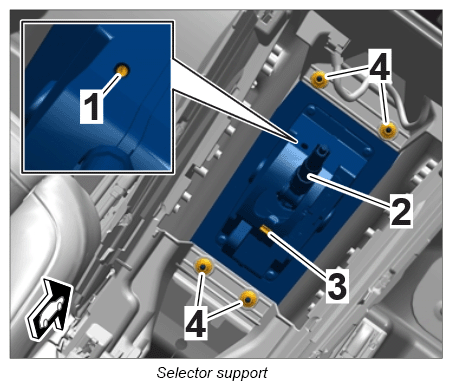

Unscrew fastening screws -1- and -3- , support the transmission using transmission bracket and lower it by about 25 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjust the locking cable -1- .

6.1. Loosen ball socket -1- .
6.2. The selector-lever position -2- on the transmission must be at the rearmost position -direction of arrow- .

6.3. Secure ball socket -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tighten fastening screw -1- for the locking cable using socket insert a/f 5 T40031 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift the transmission and fit and tighten fastening screws -1- and -3- . Tightening torque 70 Nm (52 ft. lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press release -3- , actuate selector knob -2- and move selector lever from position "P" to "D" and from position "D" to "M" and back again several times.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position insulating mat -1- and connect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position holder for switch console -1- and engage in -direction of arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
