Removing selector support

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

No lateral forces must be applied to the pull rod of the selector knob.

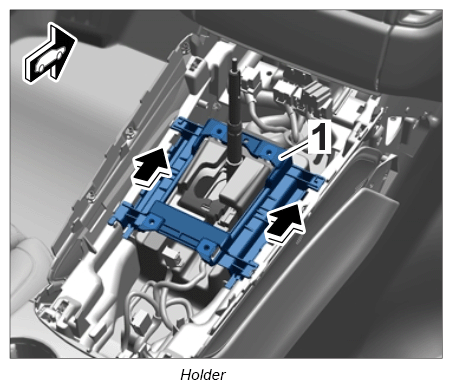

Press holder for switch console -1- in -direction of arrow- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

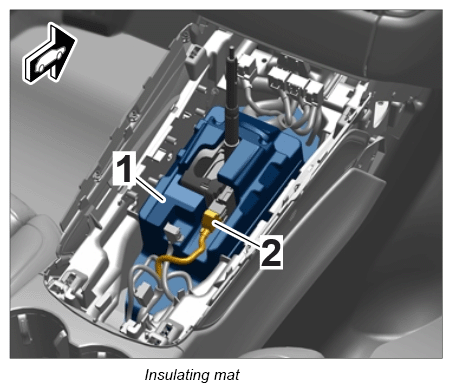

Disconnect electric plug connection -2- and remove insulating mat -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

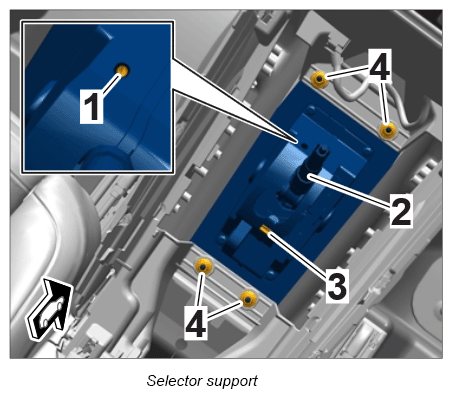

Loosen selector support.

3.1. Press release -3- .
3.2. Selector knob -2- in position "P".
Information
- Loosen clamping screw for locking cable by only about 1 turn.
- The clamping screw is only accessible in selector-lever position "P".
- When the clamping screw is loosened, the selector lever must remain in position "P".
3.3. Loosen clamping screw -1 - for locking cable by about 1 turn using socket insert a/f 5 T40031 .
Clamping screw remains in place .

3.4. Unscrew fastening nuts -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

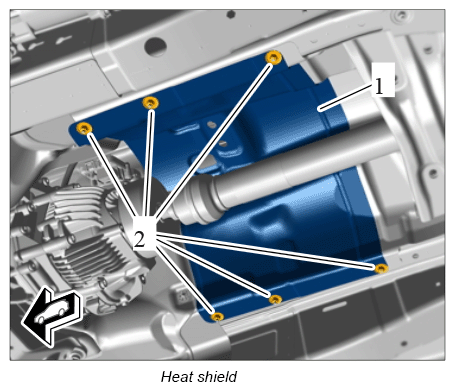

Unscrew fastening nuts -2- and remove heat shield.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- and -3- , support the transmission using transmission bracket and lower it by about 25 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove selector support.

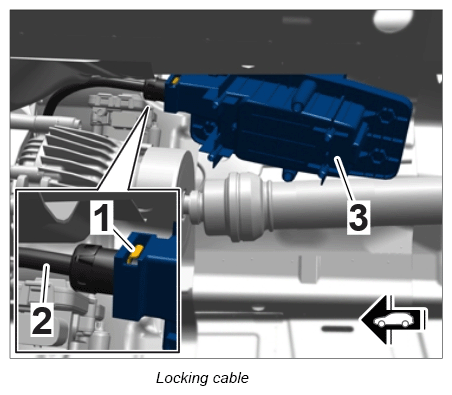

6.1. Loosen the safety clip -1- and pull locking cable -2- out of the selector support -3- .

6.2. Remove selector support -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
