Removing selector knob

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

NOTE: No lateral forces must be applied to the pull rod of the selector knob.

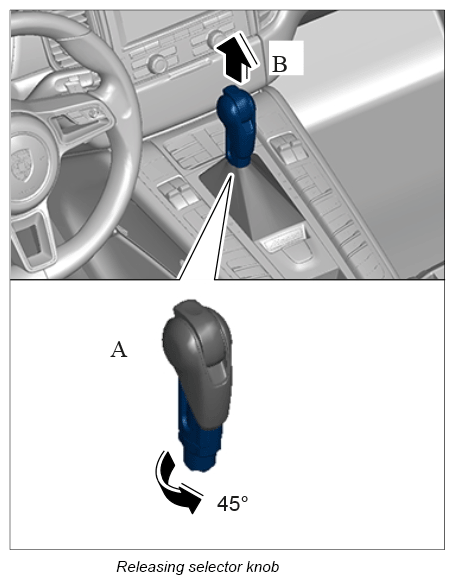

Turn locking mechanism at the bottom of the shift lever boot 45 degrees in -direction of arrow A- and release selector knob by pulling it up in -direction of arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

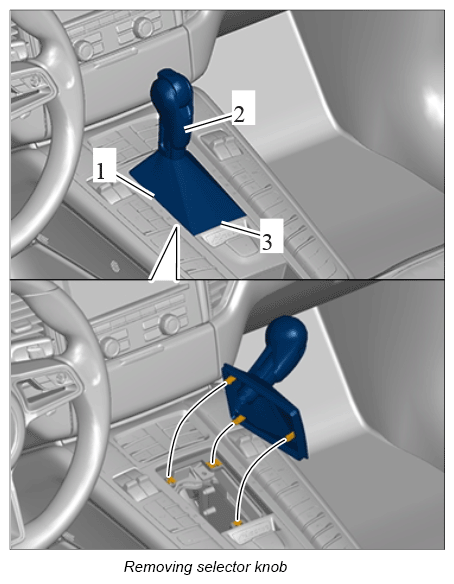

Pull selector knob -2- up slightly, position assembly wedge on selector knob cover -1- and -3- and unclip carefully.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off selector knob with selector knob cover.
