Installing selector knob
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
No lateral forces must be applied to the pull rod of the selector knob.

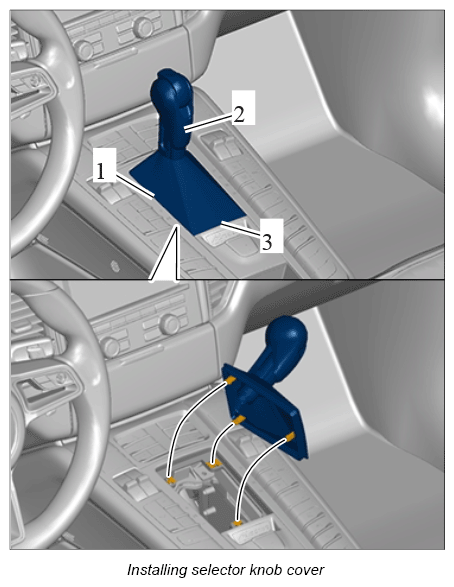

- Position selector knob with selector knob cover.
- 1.1. Fit selector knob cover over the pull rod and position selector knob loosely.
- 1.2. Clip locking lugs for the selector knob cover into the center console.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

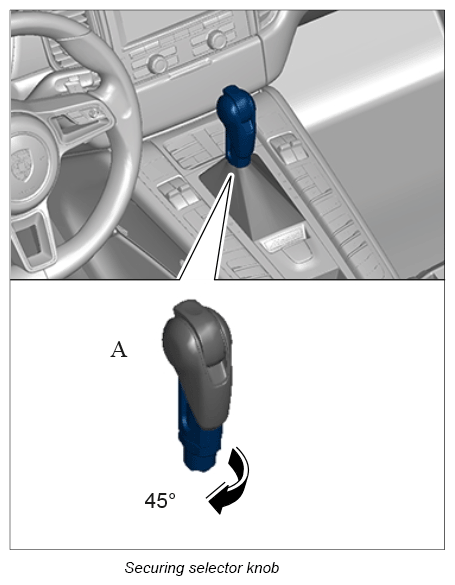

- Turn locking mechanism at the shift lever boot 45 degrees in -direction of arrow-
and secure selector knob.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
