Loosening fuse box in the cowl panel

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

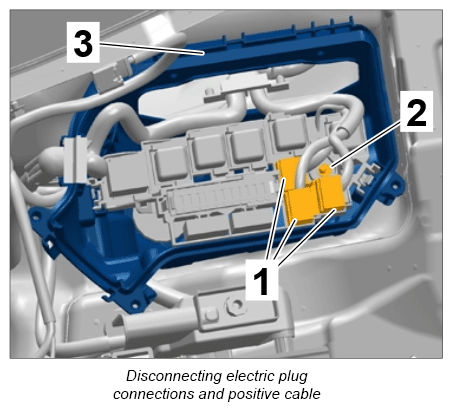

Release and disconnect electric plug connections -1- .
Screw off fastening nut -2- and remove positive cable from the fuse box -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

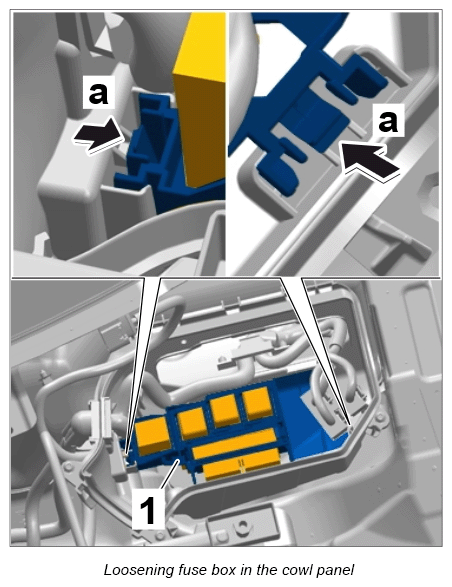

Release fuse box -1- at the left and right -a- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
