Disconnecting optical waveguide (PCM to loudspeaker booster)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Observe the general information on optical waveguides. → General information on optical waveguides - MOST bus

Information

Before routing a new optical waveguide:

Visually check the locks, connector housing and contacts for damage .
Replace damaged parts if necessary .

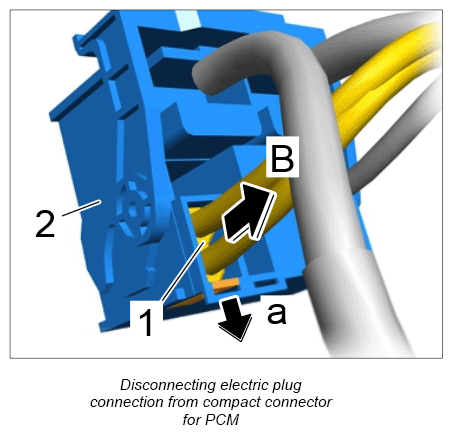

Release electric plug connection -1- for optical waveguide at the compact connector -2- for the PCM display and operator control unit -B- and disconnect it.
