Removing wire harness for number plate lights

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

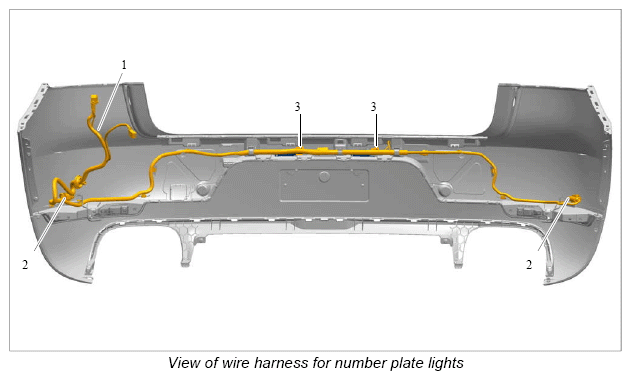

1	Wire harness for number plate lights
2	Electric plug connection for reversing light
3	Electric plug connection for number plate light

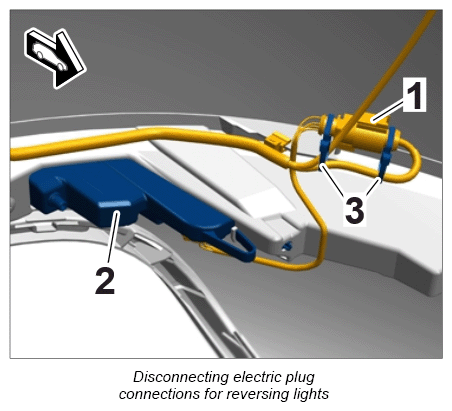

Disconnect electric plug connections -1- at the reversing lights -2- .
1. 1.1. Cut tie-wrap -3- .
2. 1.2. Release and disconnect electric plug connection.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

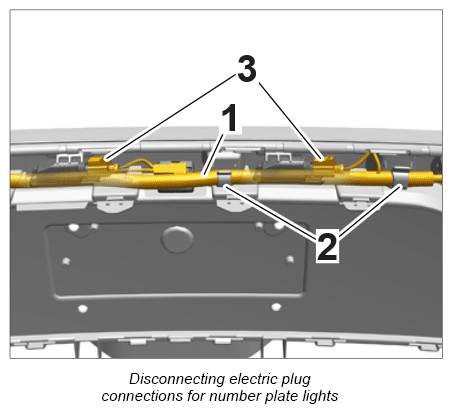

Remove wire harness for number plate lights -1- from holders -2- .
Release electric plug connections at the number plate lights -3- and disconnect them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

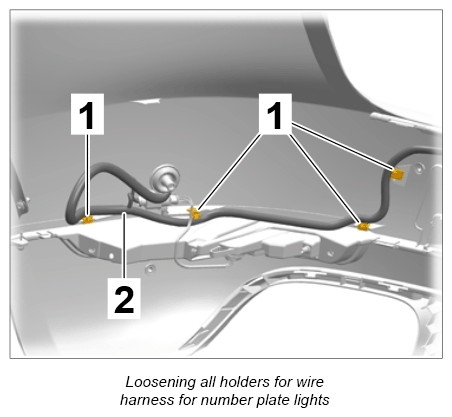

Pull all holders -1- for the wire harness for number plate lights -2- off the rear apron and remove wire harness for number plate lights.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
