Installing wire harness for power seats
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

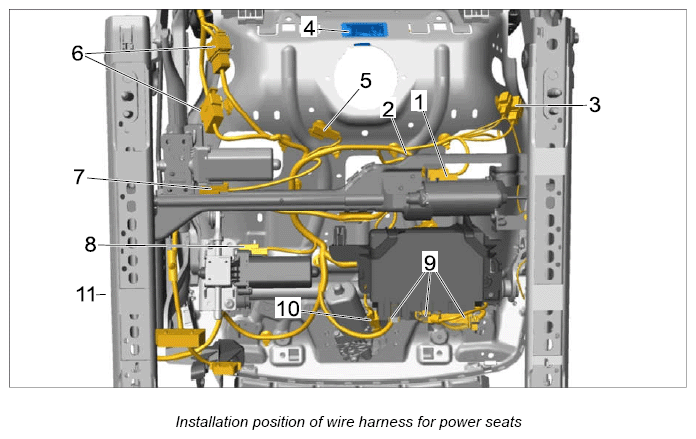

| 1 |
Electric plug connection for seat adjustment motor (two connectors) |
| 2 |
Electric plug connection for heated seats |
| 3 |
Electric plug connection for seat-belt buckle |
| 4 |
Electric plug connection for footwell lighting |
| 5 |
Electric plug connection for backrest heating |
| 6 |
Electric plug connection for wire harness for backrest (two connectors) |
| 7 |
Electric plug connection for motor for rear vertical adjustment |
| 8 |
Electric plug connection for motor for front vertical adjustment |
| 9 |
Electric plug connection for control unit for memory seat adjustment (three connectors) |
| 10 |
Electric plug connection for motor for seat fore-and-aft adjustment |
| 11 |
Electric plug connection for motor for seat adjustment |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

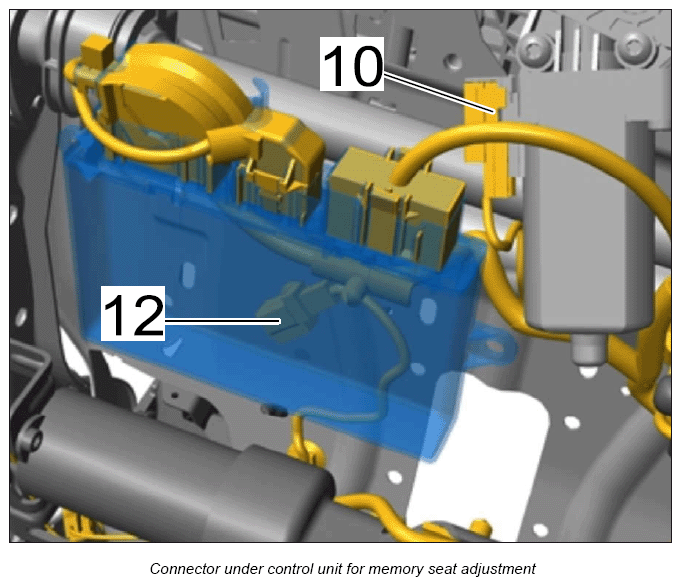

| 10 |
Electric plug connection for motor for seat fore-and-aft adjustment |
| 12 |
Electric plug connection for seat occupancy detection |
- First lay the wire harness loosely in the seat, ensuring that it is positioned correctly.

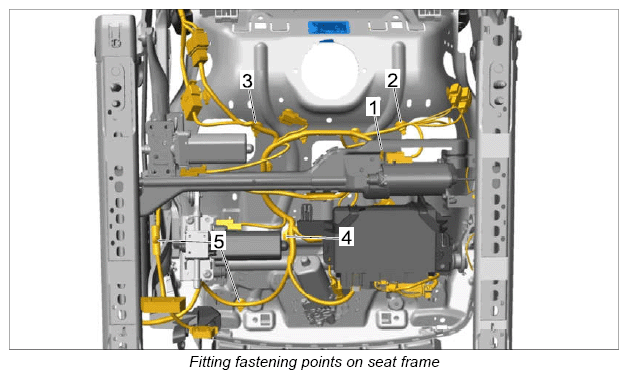

- Press in fixing clips for the wire harness in areas -1 - 5-

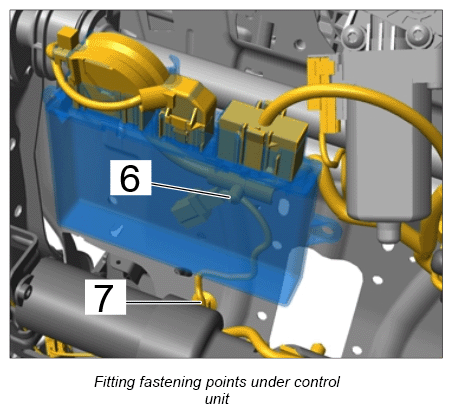

and -6 + 7-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Press in fixing clips for electric plug connections -2, 3, 5, 6-
and -12-
.
- Plug in electric plug connections -1 - 11-
and -12-
until the connector engages securely.
- Fit footwell light in seat frame.
- Fit the bracket into the cut-outs on the seat frame and screw in fastening screw on bracket for control unit for memory seat adjustment and seat-surface extension. → 740819 REMOVING AND INSTALLING FRONT SEAT-SURFACE EXTENSION
