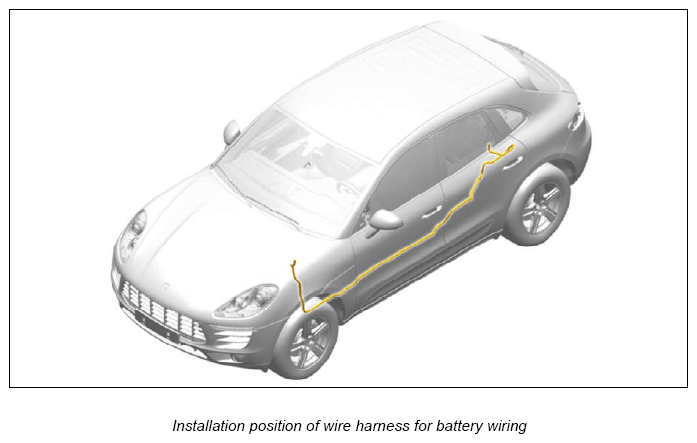

Removing wire harness for battery wiring

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
G12837646Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Disconnect positive cable (B+) at the power distributor. → 978919 REMOVING AND INSTALLING POWER DISTRIBUTOR

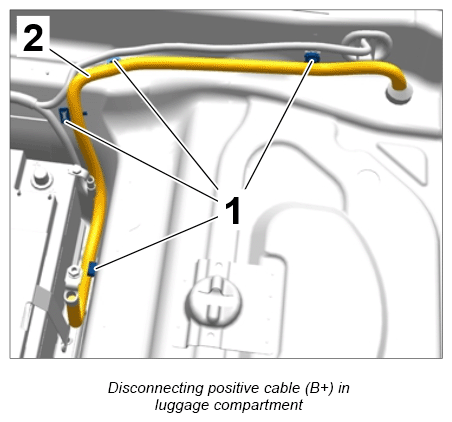

  2. Unclip holders -1-  for the positive cable (B+) -2-  in the luggage compartment.
    G12837647Courtesy of PORSCHE CARS NORTH AMERICA, INC.

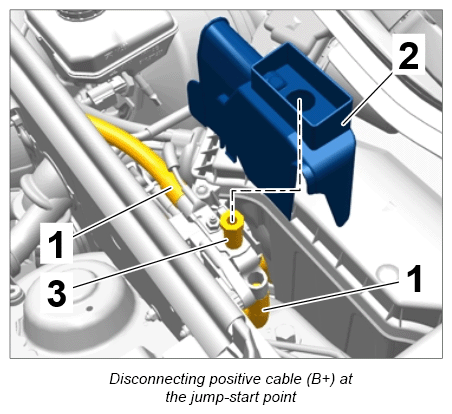

  3. Disconnect positive cables (B+) -1-  at the jump-start point.
    1. 3.1. Remove cover -2-  at the jump-start point.
    2. 3.2. Screw off connection terminal -3-  at the jump-start point.
    3. 3.3. Remove positive cables (B+) at the jump-start point.
    G12837648Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vehicles with air suspension

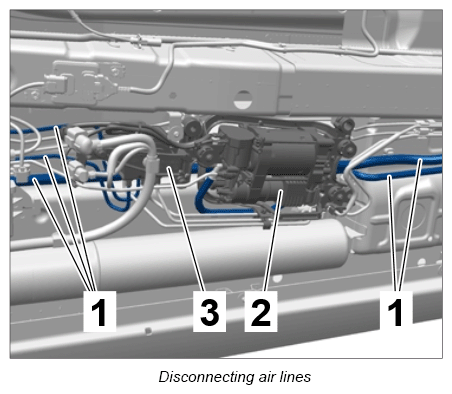

  4. Unclip air lines -1-  close to the compressor -2-  and valve unit -3-  at the left underbody from the holders.
    G12837649Courtesy of PORSCHE CARS NORTH AMERICA, INC.

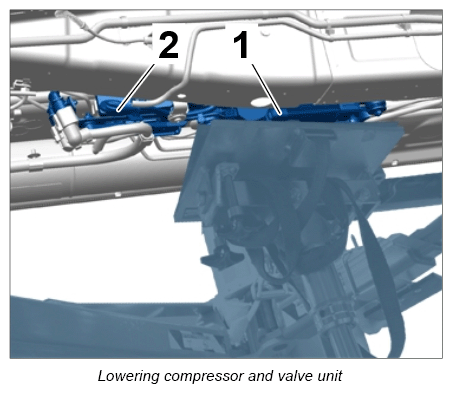

  5. Support the compressor -1-  and valve unit -2-  with connected lines using the transmission jack and lower them by approx. 100 mm. → 431519 REMOVING AND INSTALLING COMPRESSOR FOR LEVELLING SYSTEM
    G12837650Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    All vehicles

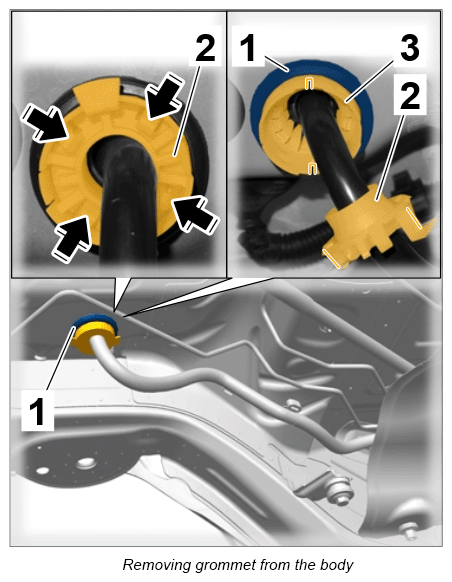

  6. Loosen grommet -1-  from the body.
    1. 6.1. Unhook locking mechanisms -2-  for the inner ring.
    2. 6.2. Pull inner ring down out of the guides for the outer ring -3-  .
    3. 6.3. Pull grommet -1-  down out of the body.
    G12837651Courtesy of PORSCHE CARS NORTH AMERICA, INC.

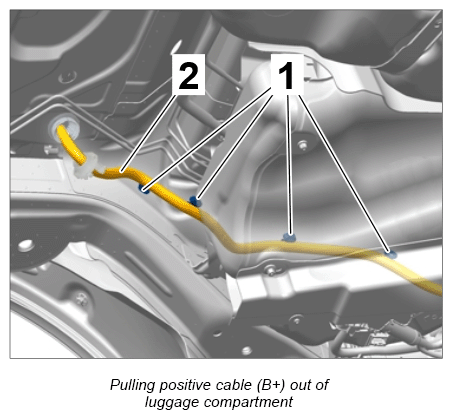

  7. Unclip holders -1-  for the positive cable (B+) -2-  at the rear left of the underbody.
  8. Pull positive cable (B+) down out of the luggage compartment.
    G12837652Courtesy of PORSCHE CARS NORTH AMERICA, INC.

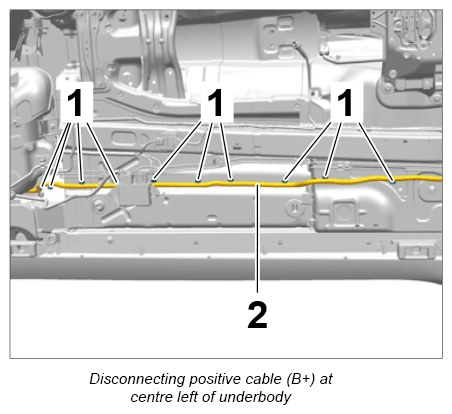

  9. Unclip holders -1-  for the positive cable (B+) -2-  at the centre left of the underbody.
    G12837653Courtesy of PORSCHE CARS NORTH AMERICA, INC.

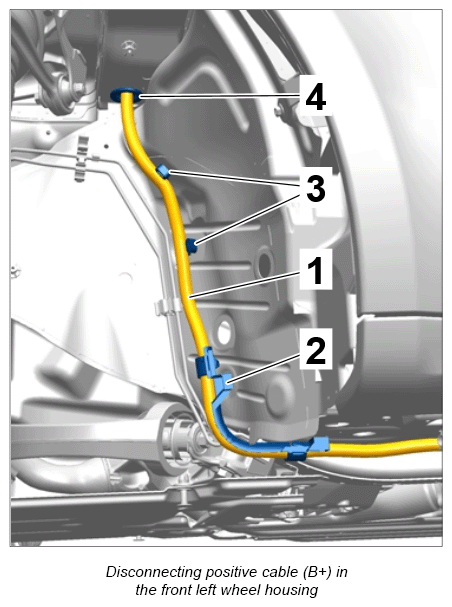

  10. Disconnect positive cable (B+) -1-  in the front left wheel housing and remove it.
    1. 10.1. Unclip guide -2-  .
    2. 10.2. Unclip holders -3-  for the positive cable (B+).
    3. 10.3. Pull grommet -4-  down out of the body.
G12837654Courtesy of PORSCHE CARS NORTH AMERICA, INC.
