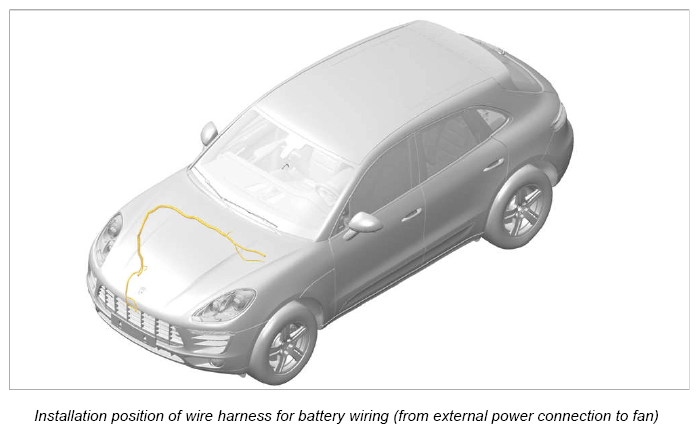

Removing battery-starter wire harness (from external power connection to starter)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

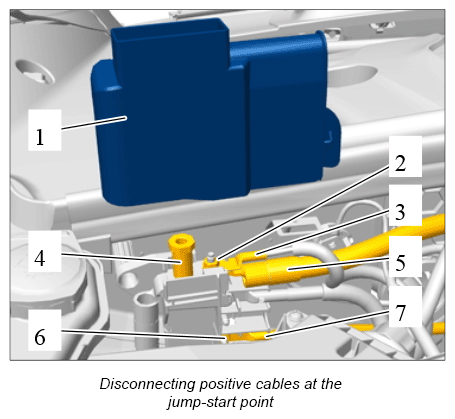

Disconnect positive cables at the jump-start point.
1. 1.1. Remove cover -1- at the jump-start point.
2. 1.2. Screw off fastening nut -2- and remove positive cable -3- from positive cable (B+) -5- .
3. 1.3. Unscrew connection terminal -4- at the jump-start point and remove positive cable (B+) at the jump-start point.
4. 1.4. Unscrew fastening nut -6- for positive cable -7- at the jump-start point.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

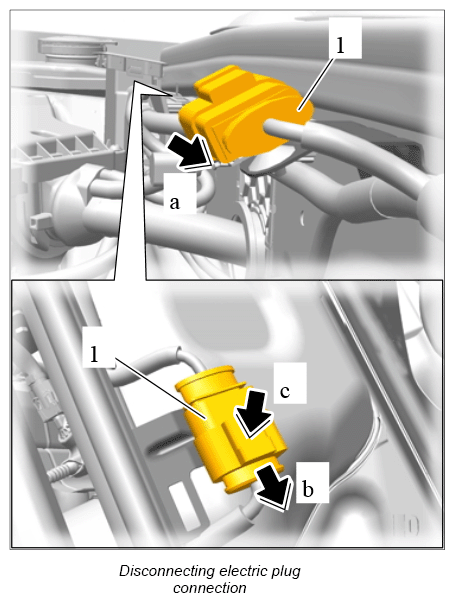

Disconnect electric plug connection -1- .
1. 2.1. Disengage electric plug connection -a- and push it down towards the rear and off the retaining clip.
2. 2.2. Pull red locking mechanism -b- .
3. 2.3. Pull secondary lock -c- and disconnect electric plug connection.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

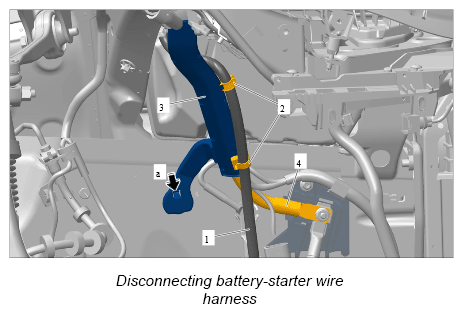

Disconnect battery-starter wire harness -1- on the cowl panel.
1. 3.1. Unclip the holder -2- at the battery-starter wire harness holder -a- .
2. 3.2. Unclip the holders -3- for the battery-starter wire harness on the cowl panel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

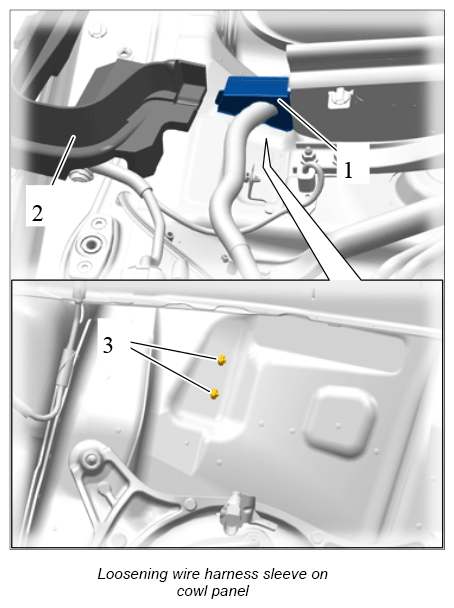

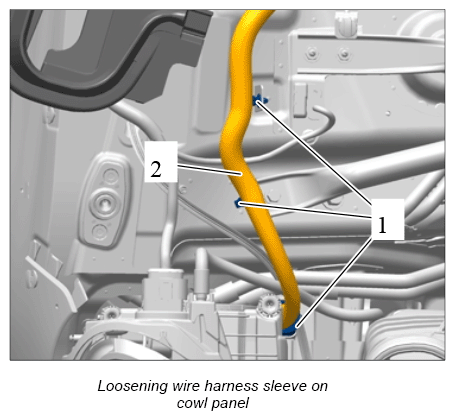

Loosen wire harness sleeve -1- on the cowl panel.
1. 4.1. Carefully move seal -2- to the side.
2. 4.2. Unclip the holders -3- for the wire harness sleeve in the wheel housing at the top right.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip the holders -1- for the battery-starter wire harness -2- on the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

One or two electric plug connections for the fans must be disconnected, depending on the engine type.

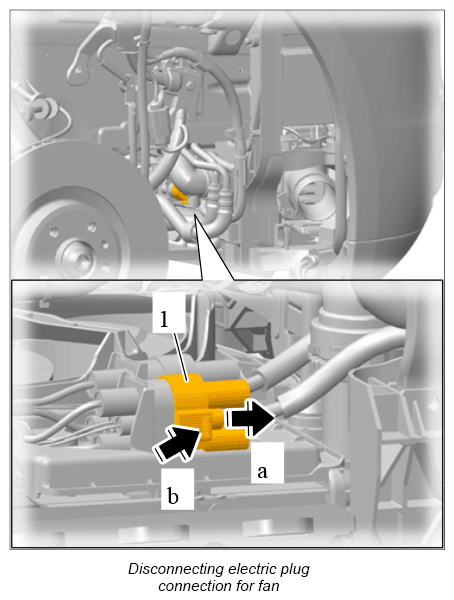

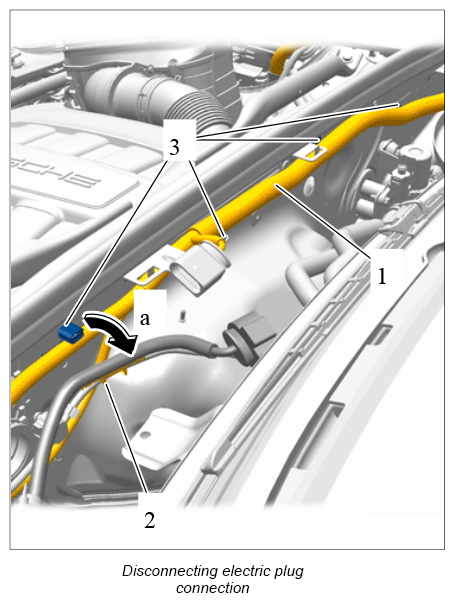

Disconnect electric plug connection -1- .
1. 6.1. Pull red locking mechanism -a- .
2. 6.2. Press secondary lock -b- and disconnect electric plug connection.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

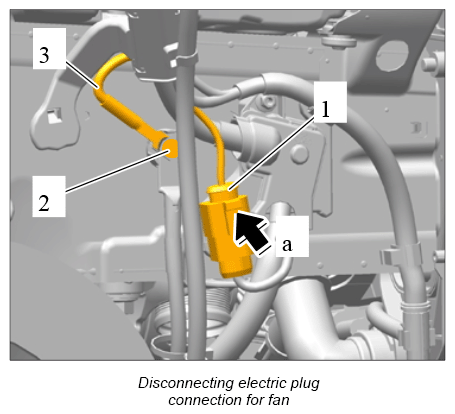

Release electric plug connection -1- (-a- ) and disconnect it.
Screw off fastening nut -2- and remove ground line -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

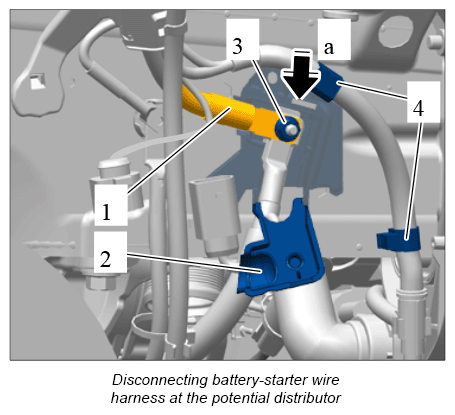

Disconnect battery-starter wire harness -1- at the potential distributor.
1. 9.1. Release cover -2- on the potential distributor and fold it down.
2. 9.2. Screw off fastening nut -3- and remove B+ positive cable from the potential distributor.
3. 9.3. Open the holders -4- and remove battery-starter wire harness.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip breather hose -1- from the holders -2- for the wiring duct -3- .
Release wiring duct -a- and pull it up out of the longitudinal member.
Remove battery-starter wire harness -4- in a downward direction.
