Removing knee airbag on passenger's side

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect handling of airbag units

Triggering of airbag unit.
System faults can occur.

→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).

→ A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only pull off connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not position anything on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

→ Do not expose airbag units to temperatures of more than 90°C.

→ Do not remove the short-circuit spring on the plug-in contacts.

→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

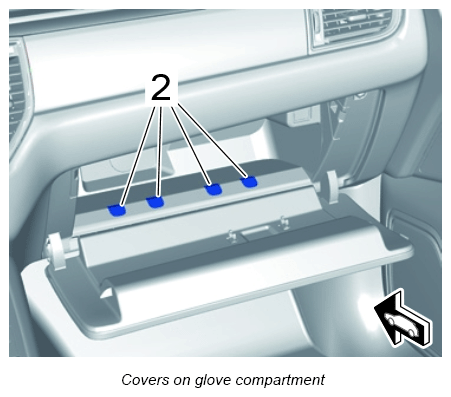

Remove covers -2- at the front of the glove compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

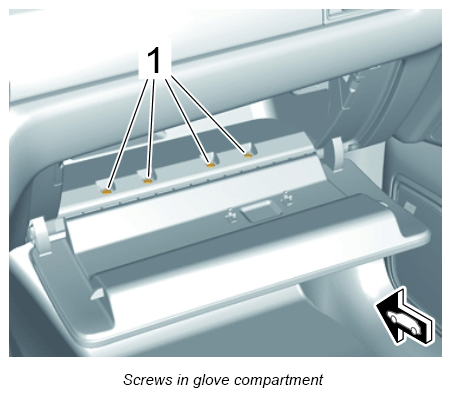

Unscrew and remove fastening screws for knee airbag -1- in the glove compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

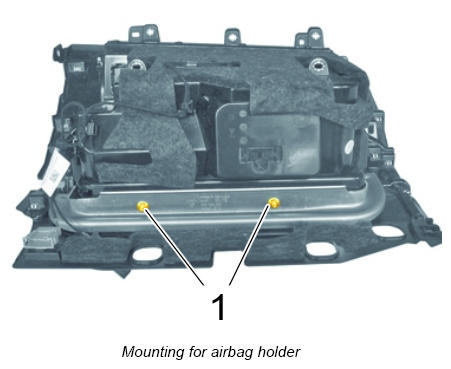

Loosen fastening nuts for knee airbag holder -1- at the back of the glove compartment and remove holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slowly guide the knee airbag downwards until the knee airbag connector is accessible.

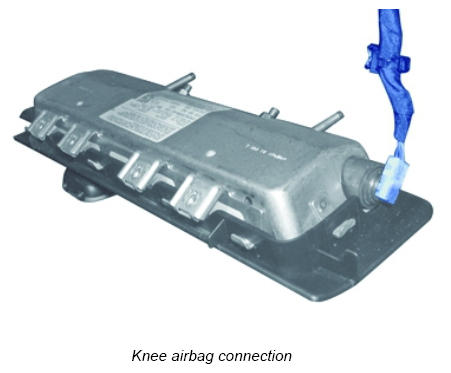

Disconnect electric connector on knee airbag.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide cable with knee airbag connector through the glove compartment opening.
Remove knee airbag on passenger's side and place it to one side in an appropriate manner.
