Removing load-through provision

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold left and right backrest and load-through provision forward.

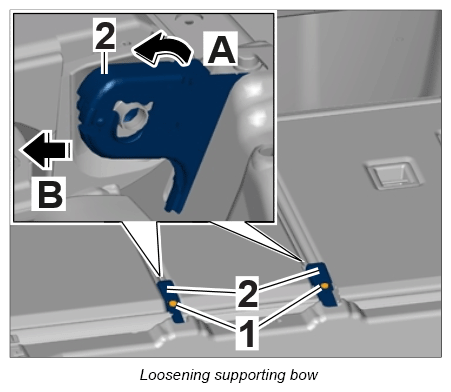

  2. Unscrew and remove fastening screws -1-  for the supporting bow -2-  .
    G12836414
  3. Remove supporting bow -2-  by moving it upwards - A-  and unhooking it and pulling it forward out of the cross bolt - B-  .

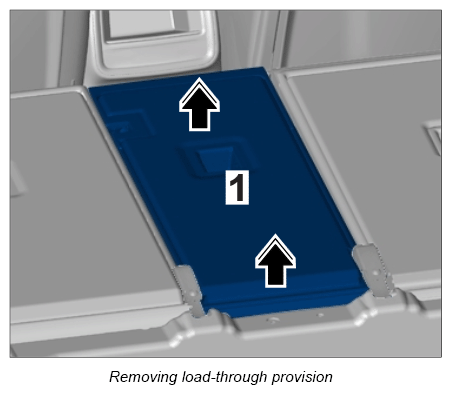

  4. Lift load-through provision -1-  out of the mount at the left and right.
G12836415
