Removing armrest with cover (rear)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

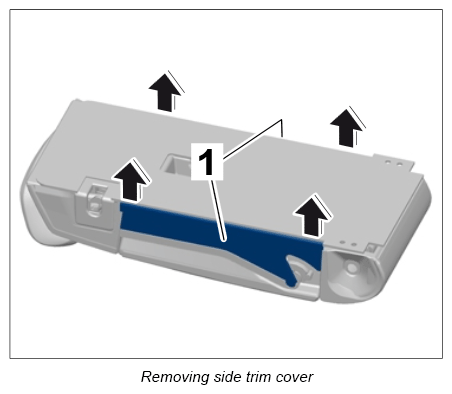

  1. Unclip side trim covers -1-  using a plastic wedge -2-  and move them to the rear.
    G12836408

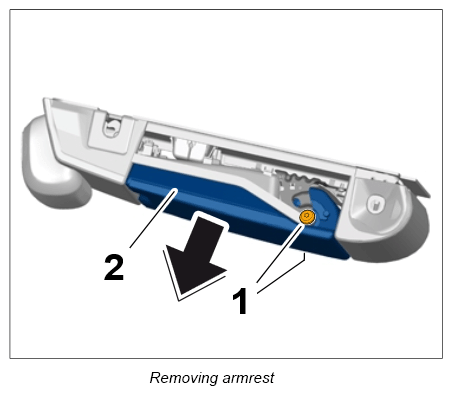

  2. Loosen fastening screws -1-  for the armrest -2-  .
    G12836409
  3. Remove armrest with cover.
