Installing armrest with cover

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

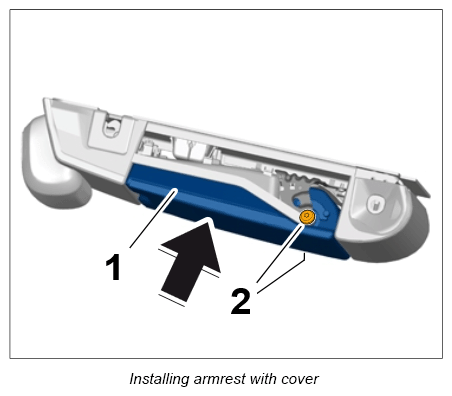

  1. Position armrest -1-  so that the fastening screws -2-  can be fitted.
    G12836410
  2. Tighten fastening screws -2-  for the armrest Tightening torque 4.5 Nm (3.25 ft lb.)  .

    Information

    • Replace fastening screws with new fastening screws before installation  .
    • Self-locking nuts and screws must always be replaced before installation  .

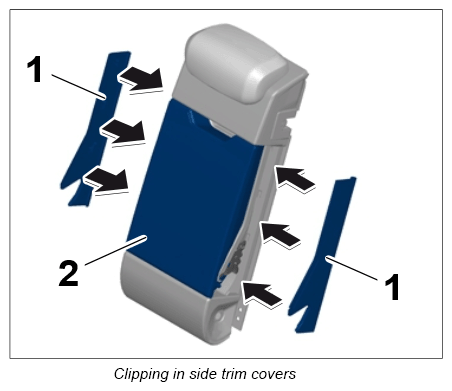

  3. Clip side trim covers -1-  into the load-through provision -2-  .
G12836411
