Loosening cover for rear backrest

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cushion clips.

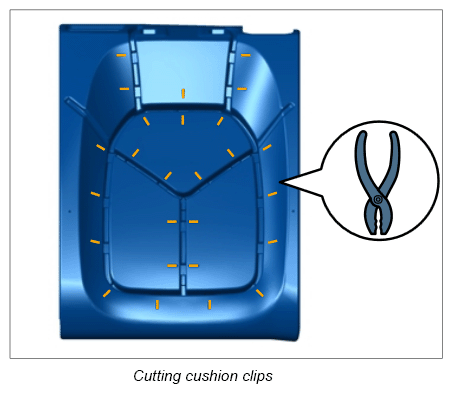

    1. 1.1. Cut metal cushion clips (-markings-  ) using side cutters.
      G12836402
    2. 1.2. Remove remaining parts of cushion clips.
  2. Only for vehicles with heated seats:  Disconnect electric plug connection for heated seats.

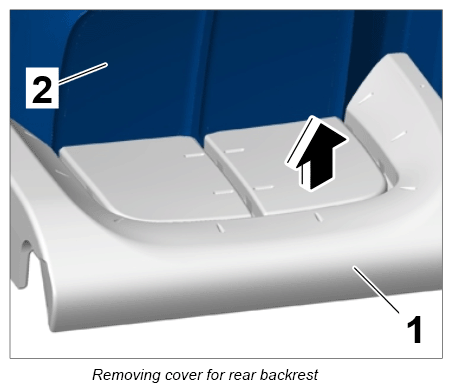

  3. Detach padding for rear backrest -1-  from the cover -2-  .
G12836403
