Securing padding for rear backrest
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Always replace metal cushion clips .
- Reuse plastic cushion clips. Replace defective cushion clips .
- Align cover -1-
over the padding for the rear backrest.
- For vehicles with heated seats: Connect electric plug connection for heated seats.
- Fasten cushion clips.

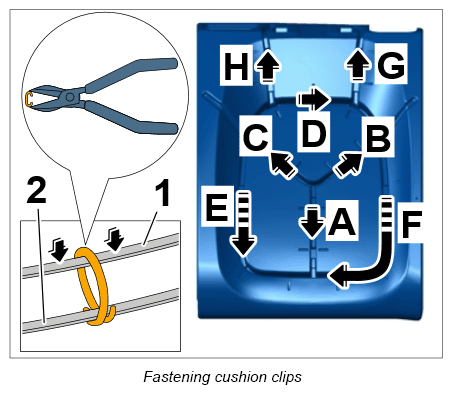

Secure the metal struts in the cover -1- using cushion clip pliers Nr.130 in the sequence shown ( A to I- ) to the metal struts of the padding -2- .
