Installing padding for rear backrest
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Detach padding from the cover and secure it, see → 745255 REPLACING PADDING FOR REAR BACKREST
- Secure cover piping -1-
. To do this, start from the top and moving to the underside of the backrest (-A, B, C, D-
), press the cover piping -1-
into the retaining strips -2-
.
- Fit cover on locking mechanism for backrest -1-
from above and clip it in .

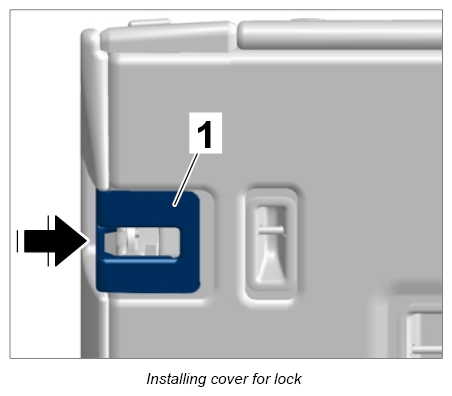

- Fit cover on lock for backrest -1-
at the sides and press it on securely.
- Only for left rear backrest: Remove cover for belt.
