Loosening padding for rear seat surface

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

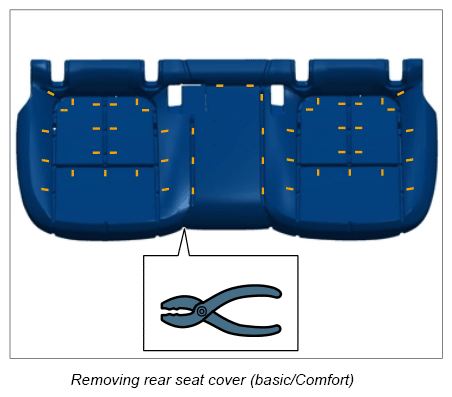

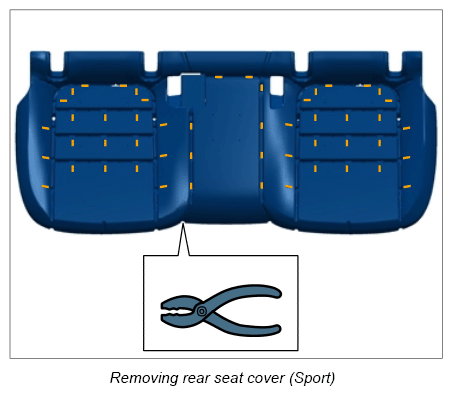

  1. Cut metal cushion clips (-markings-  ) using side cutters.
    G12836365
    G12836366
  2. Remove remaining parts of cushion clips and detach padding from the cover.
  3. For vehicles with heated seats:  Disconnect electric plug connections, disconnect electric lines from the cushion carrier and remove with the cover.
