Removing padding for rear seat surface

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place rear seat on a clean surface with the top side down.

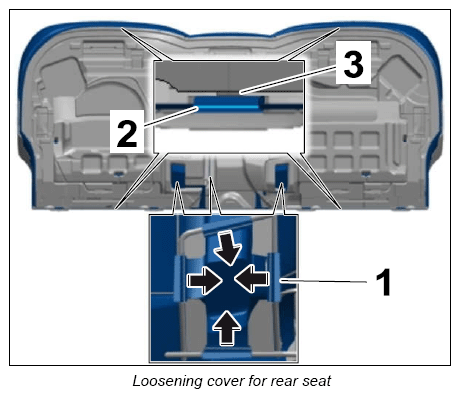

  2. Unclip cover tensioner -1-  .
    G12836361
  3. Loosen cover piping -2-  from the retaining strips -3-  all the way around.

Information

Detach padding from the cover and secure it, see → 744955 REPLACING PADDING FOR REAR SEAT SURFACE
