Removing regulator for rear heated seats

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

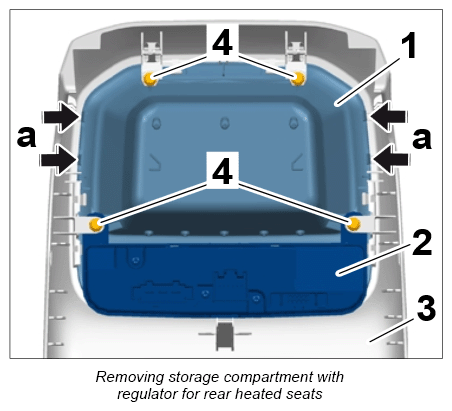

  1. Remove storage compartment -1-  with regulator for rear heated seats -2-  from covering frame for centre console -3-  .
    1. 1.1. Unscrew fastening screws -4-  .
    2. 1.2. Disengage side locking mechanisms -a-  and remove storage compartment with regulator for rear heated seats from covering frame for centre console.
    G12836358

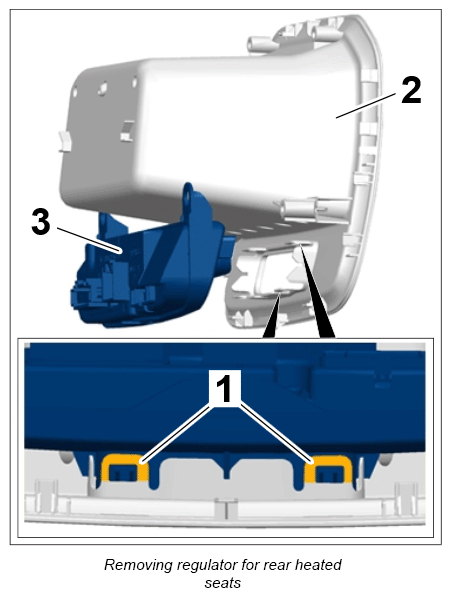

  2. Carefully disengage locking mechanisms -1-  at the top and bottom of the storage compartment -2-  and pull regulator for rear heated seats -3-  out of the storage compartment.
G12836359
